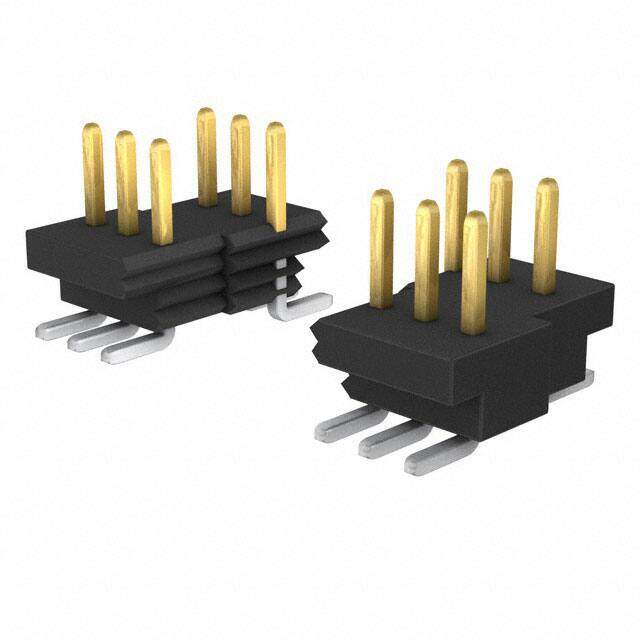

BKT-169-01-L-V-P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 69 POS 1mm Solder ST SMD
PDF
/
Inventory: 4611
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Mounting Option 1 LOCKING
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Series BKT
JESD-609 Code e3
Feature Pick and Place
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 69
Number of Rows 2
Gender Male
Additional Feature POLARIZED
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.8A per Contact
Total Number of Contacts 138
Terminal Pitch 1mm
Insulation Height 0.064 1.63mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.039 1.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.388 inch
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.065 1.65mm
PCB Contact Pattern STAGGERED
Body Depth 0.76 inch
Mating Contact Pitch 0.019 inch
Polarization Key POLARIZED HOUSING
Dimensions
Plating Thickness 10μin
Contact Finish Thickness - Mating 10.0μin 0.25μm
Stack Height (Mating) 4.14mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
