132371
RoHS
RoHS compliant
RoHS compliantPackage SMA
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

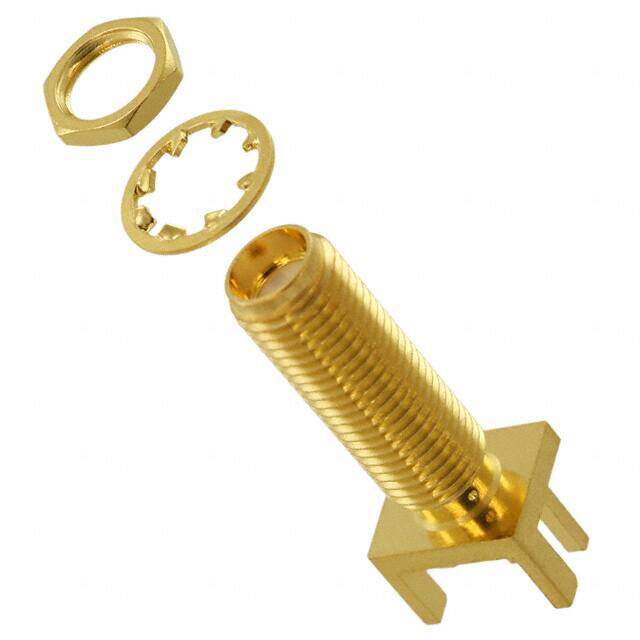

SMA Connector Receptacle, Female Socket 50 Ohm Board Edge, End Launch; Panel Mount, Bulkhead Solder
PDF
/
Buying Options
Total Price: USD $13.8
Unit Price: USD $13.79781
≥1 USD $13.79781
≥10 USD $13.0168
≥100 USD $12.28
≥500 USD $11.58491
Inventory: 649
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Bulkhead, Edge, Panel
Mounting Type Board Edge, End Launch; Panel Mount
Package / Case SMA
Mounting Feature Bulkhead - Front Side Nut
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Brass
Center Contact Plating Gold
Center Contact Material Beryllium Copper
Technical
Operating Temperature -65°C~165°C
Packaging Bulk
Published 2005
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Socket
Max Operating Temperature 165°C
Min Operating Temperature -65°C
Fastening Type Threaded
Housing Color Gold
Impedance 50Ohm
Connector Style SMA
Number of Ports 1
Body Plating Gold
Frequency (Max) 18GHz
Mating Cycles 500
Contact Termination Solder
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Finish Gold
Shield Termination Solder
Compliance
RoHS Status RoHS Compliant
