122414
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Coaxial Connectors (RF)
Description

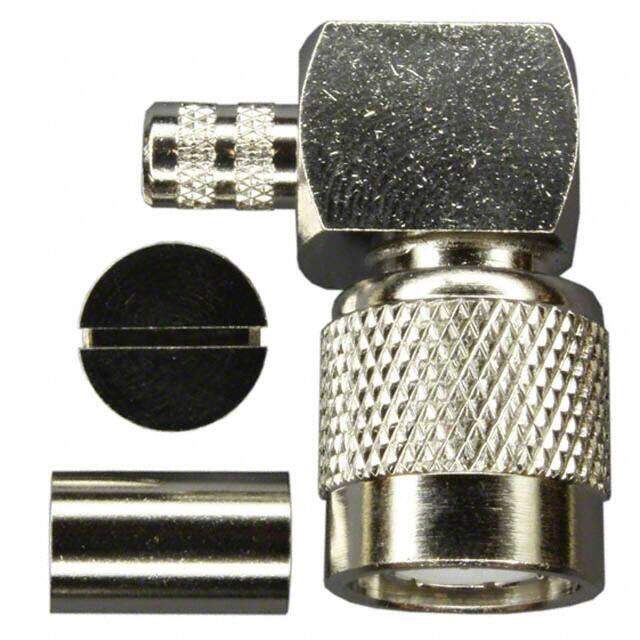

TNC Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder
PDF
/
Buying Options
Total Price: USD $9.95
Unit Price: USD $9.9528
≥1 USD $9.9528
≥10 USD $8.95928
≥100 USD $8.439904
≥500 USD $8.2236
≥1000 USD $8.00712
≥3000 USD $7.141526
Inventory: 75
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 28mm
Technical
Shield Termination Crimp
Cable Group RG-8X, Belden 9258, LMR-240
Body Finish Nickel
Insertion Loss 0.18dB
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Contact Termination Solder
Mating Cycles 500
Frequency (Max) 11GHz
Body Plating Nickel
Number of Ports 1
Connector Style TNC
Impedance 50Ohm
Housing Color Silver
Frequency 11GHz
Orientation Right Angle
Fastening Type Threaded
Voltage - Rated 500V
Min Operating Temperature -65°C
Max Operating Temperature 165°C
Connector Type Plug, Male Pin
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2007
Packaging Bulk
Physical
Center Contact Material Brass
Center Contact Plating Gold
Body Material Brass
Weight 21.900007g
Dielectric Material Polytetrafluoroethylene (PTFE)
Insulation Material Polytetrafluoroethylene
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
