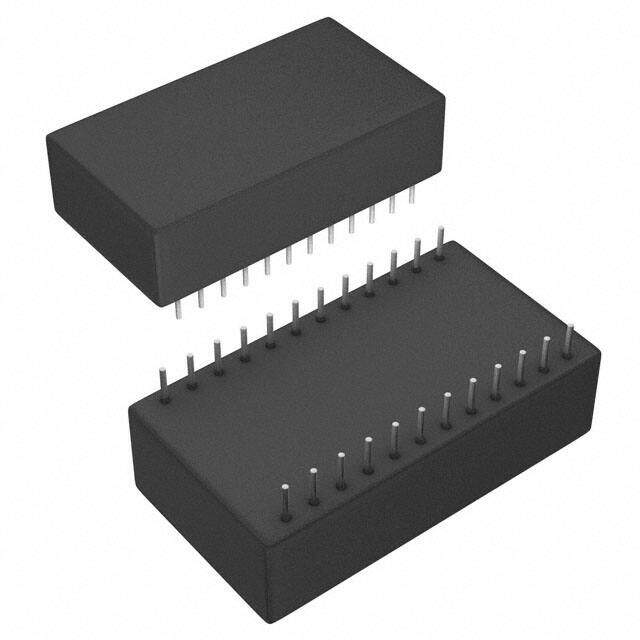

BQ3287EAMT
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module (0.61, 15.49mm)
Category Integrated Circuits (ICs) / Clock/Timing - Real Time Clocks
Description
24-DIP Module (0.61 15.49mm) BQ3287 8542.39.00.01 Alarm Daylight Savings Leap Year NVSRAM Square Wave Output real time clock IC 4.5V~5.5V 33.72mm 0.032MHz 0C~70C
PDF
/
Buying Options
Total Price: USD $0.03
Unit Price: USD $0.02755
≥1 USD $0.02755
≥10 USD $0.0228
≥100 USD $0.02185
≥500 USD $0.02185
≥1000 USD $0.0209
≥10000 USD $0.019
Inventory: 37461
Minimum: 1
-
+
Technical Details
Technical
Operating Supply Voltage 5V
Power Supplies 5V
Interface Parallel
Memory Size 242B
Clock Frequency 0.032MHz
Logic Function Clock
Number of Timers 1
Time Format HH:MM:SS (12/24 hr)
Date Format YY-MM-DD-dd
Time-Min SECONDS
Interrupt Capability Y
Volatile NO
Base Part Number BQ3287
Terminal Pitch 2.54mm
Supply Voltage 5V
Terminal Position DUAL
Voltage - Supply 4.5V~5.5V
Technology CMOS
Subcategory Timer or RTC
HTS Code 8542.39.00.01
Type Clock/Calendar
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output
Packaging Tube
Operating Temperature 0°C~70°C
Dimensions
Height 9.52mm
Length 33.72mm
Width 18.42mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
Physical
Number of Pins 24
Package / Case 24-DIP Module (0.61, 15.49mm)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
