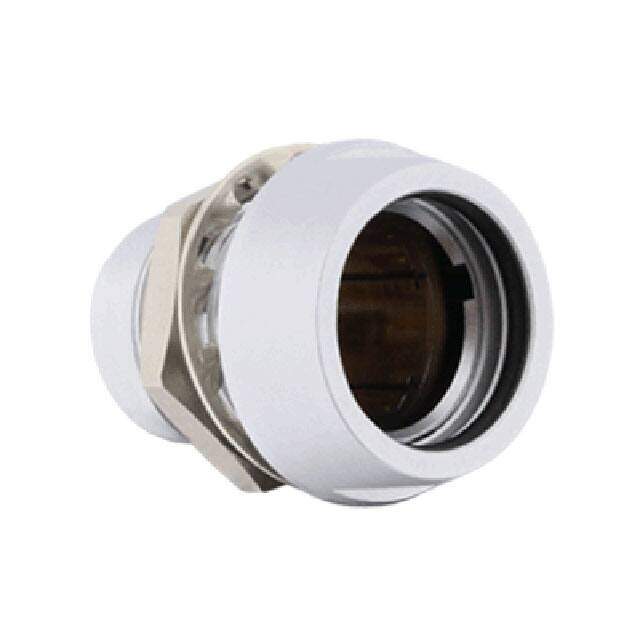

JBXEC2G05FCSDS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 5POS GOLD CRIMP
PDF
/
Inventory: 8091
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Copper
Mount Bulkhead, Front, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front or Rear Side Nut
Shell Material Brass
Insert Material Polyetheretherketone (PEEK)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series JBX
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Applications Industrial, Instrumentation, Medical, Telecommunications
Gender Male
Voltage - Rated 900V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Orientation G
Shielding Shielded
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 14A
Shell Finish Chrome over Nickel
Shell Size - Insert 2
Contact Gender Female
Max Current Rating 14A
Plating Chrome
Wire/Cable Gauge 18 AWG
Dimensions
Length 26mm
Contact Finish Thickness - Mating 19.7μin 0.50μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening Yes
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
