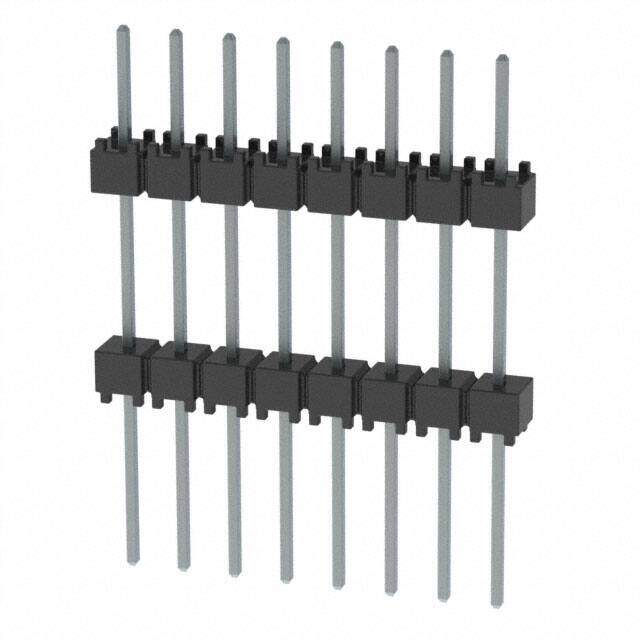

EW-08-12-T-S-500 image
Favorite
EW-08-12-T-S-500 image
Favorite

EW-08-12-T-S-500

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Description Conn Board Stacker HDR 8 POS 2.54mm Solder ST Thru-Hole Bulk
PDF
/
Inventory: 7512
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Flex Stack, EW
Packaging Bulk
Contact Finish - Post (Mating) Tin
Depth 2.54mm
Orientation Straight
Total Number of Contacts 8
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 1
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 8
Connector Type BOARD STACKING CONNECTOR

Physical

Housing Material Polyester
Mounting Type Through Hole
Contact Material Bronze

Supply Chain

Factory Lead Time 3 Weeks

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Length - Tail 0.330 8.382mm
Length - Post (Mating) 0.200 5.080mm
Length - Overall Pin 1.030 26.162mm
Length - Stack Height 0.500 12.700mm
Length 20.32mm
