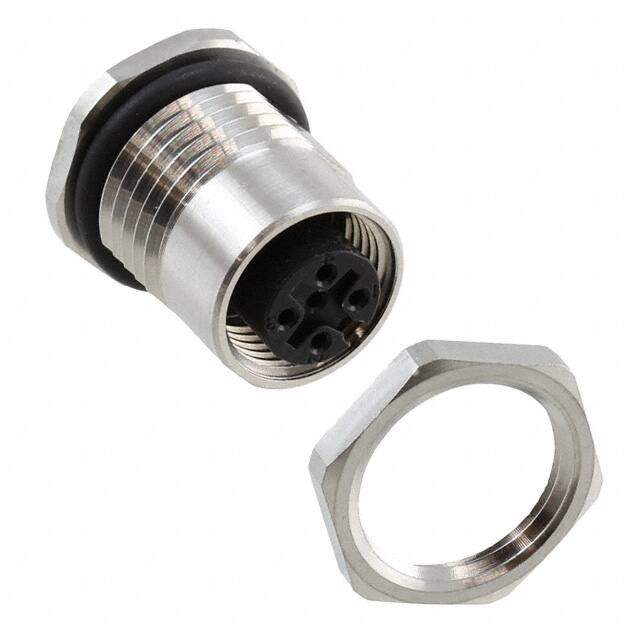

1554733
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Metric Connectors SACC-DSI-M12FS 5CON-L180 VA
PDF
/
Buying Options
Total Price: USD $33.78
Unit Price: USD $33.7832
≥1 USD $33.7832
≥10 USD $31.08424
≥100 USD $28.7188
≥500 USD $27.367296
≥1000 USD $27.217062
Inventory: 95
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Zinc
Contact Plating Gold
Mount Bulkhead, Front Side Nut, Panel
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Shell Material Stainless Steel
Housing Material Stainless Steel
Insert Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2012
Series DSI
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 5
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Silver
Gender Receptacle
Voltage - Rated 60V
Fastening Type Threaded
Voltage - Rated DC 60V
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Orientation A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Size - Insert M12-5
Number of Contacts 5
Contact Gender Female
Max Current Rating 4A
Thread Size M12
Wire/Cable Diameter 12 mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, IP67, Waterproof
