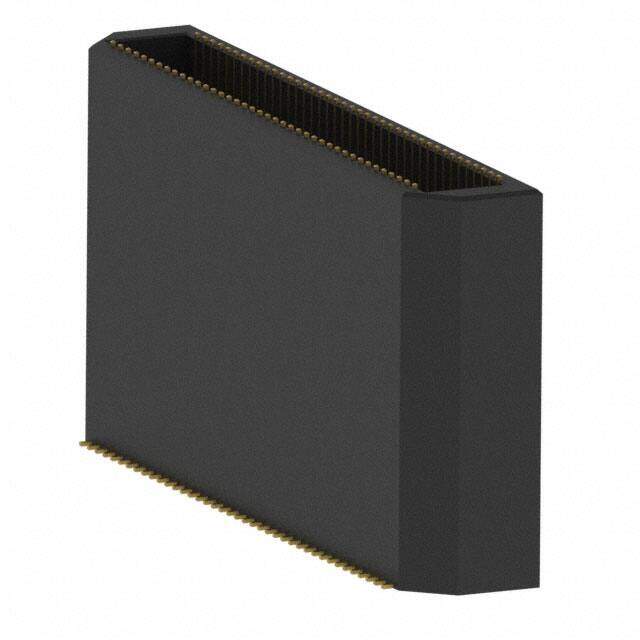

BTE-040-05-H-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description
Conn Micro Terminal HDR 80 POS 0.8mm Solder ST SMD
PDF
/
Inventory: 2121
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type Surface Mount
Technical
Packaging Tube
Published 2016
Series BTE
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Outer Shroud Contacts
Number of Positions 80
Number of Rows 2
Gender Male
HTS Code 8536.69.40.40
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.031 0.80mm
Total Number of Contacts 80
Contact Finish Gold
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Height Above Board 0.719 18.26mm
Stack Height (Mating) 19.1mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
