1506765
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

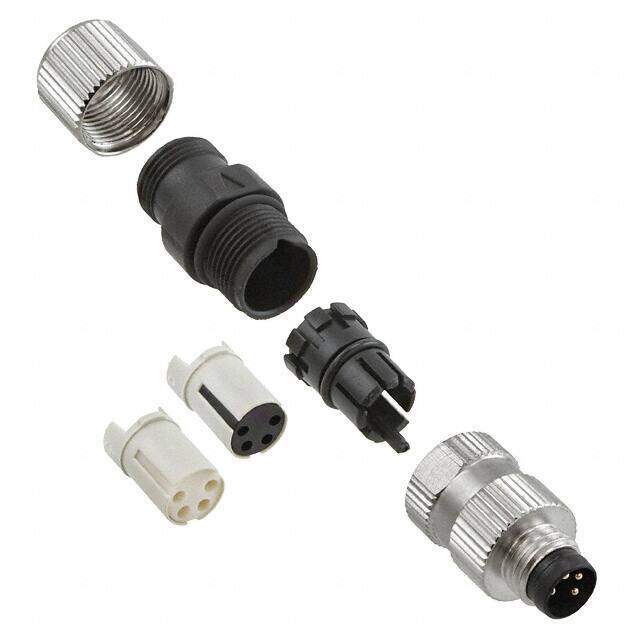

Circular Metric Connectors M8 SENSOR PLG 3P
PDF
/
Buying Options
Total Price: USD $23.17
Unit Price: USD $23.1704
≥1 USD $23.1704
≥10 USD $21.31272
≥100 USD $19.691232
≥500 USD $18.764504
≥1000 USD $18.661491
Inventory: 98
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, IP68, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 35.4mm
Technical
Thread Size M8
Cable Opening 0.118 ~ 0.197 (3.00mm ~ 5.00mm)
Number of Ports 1
Max Voltage Rating (AC) 30V
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Shell Size - Insert M8-4
Shell Finish Nickel
Current Rating 4A
Ingress Protection IP68 - Dust Tight, Waterproof
Orientation A
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 30VAC/DC
Color Black, Silver
Connector Type Plug, Male Pins
Termination Axial Pierce
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Backshell
JESD-609 Code e4
Series SACC
Published 2011
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Backshell Material, Plating Polyamide (PA66), Nylon 6/6
Insert Material Polyamide (PA66), Nylon 6/6
Weight 13.499986g
Housing Material Plastic
Shell Material Brass
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Zinc
Supply Chain
Factory Lead Time 7 Weeks
