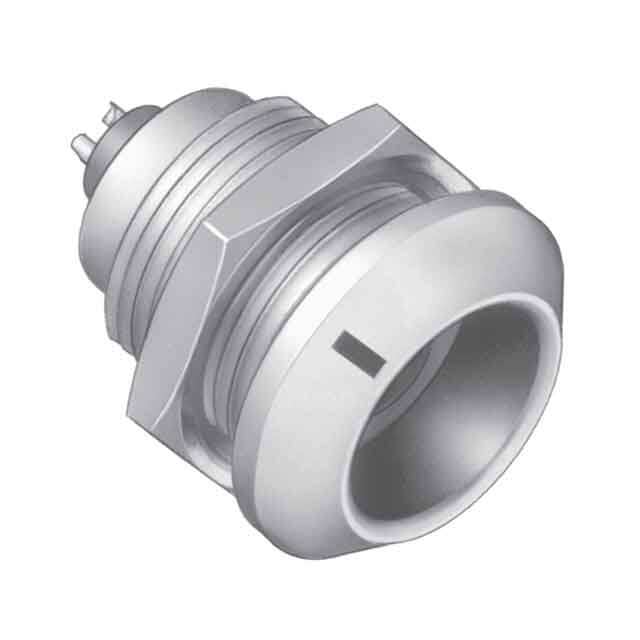

EGG.2K.304.CLL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING
PDF
/
Buying Options
Total Price: USD $43.11
Unit Price: USD $43.106443
≥1 USD $43.106443
≥10 USD $40.666458
≥100 USD $38.364581
≥500 USD $36.193
≥1000 USD $34.144344
Inventory: 6937
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP66, Water Resistant, Waterproof
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 59.0μin 1.50μm
Technical
Coupling Type SNAP
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Shell Size - Insert 304
Shell Finish Chrome
Current Rating 15A
Ingress Protection IP66/68 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Orientation G
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Color Silver
Number of Positions 4
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series 2K
Packaging Bulk
Operating Temperature -55°C~200°C
Physical
Insert Material Polyetheretherketone (PEEK)
Shell Material Brass
Mounting Feature Bulkhead - Rear Side Nut
Mounting Type Panel Mount
Mount Flanges, Panel, Rear Side Nut
Contact Material Bronze
