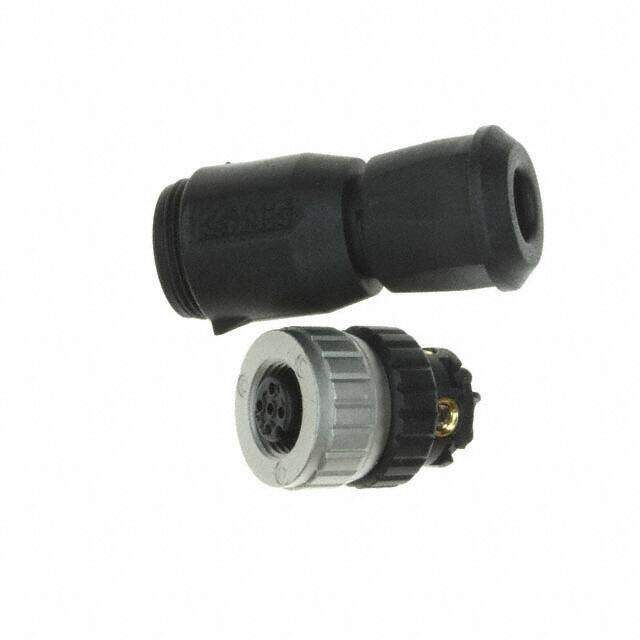

43-00091
RoHS
/
Package Axial
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE 4POS GOLD SCREW
PDF
/
Inventory: 4488
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Zinc
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Axial
Shell Material Polyamide (PA6), Nylon 6, Glass Filled
Insert Material Polyamide (PA6), Nylon 6
Backshell Material, Plating Polyamide (PA6), Nylon 6, Glass Filled
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2009
Series 43
Feature Backshell, Coupling Nut
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Female Sockets
Number of Positions 4
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Black, Silver
Voltage - Rated 250V
Fastening Type Threaded
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Orientation A
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Size - Insert M12-4
Number of Contacts 4
Cable Opening 0.157 ~ 0.236 (4.00mm ~ 6.00mm)
Thread Size M12
Compliance
Material Flammability Rating UL94
RoHS Status RoHS Compliant
Ratings Dust Tight, IP67, Waterproof
