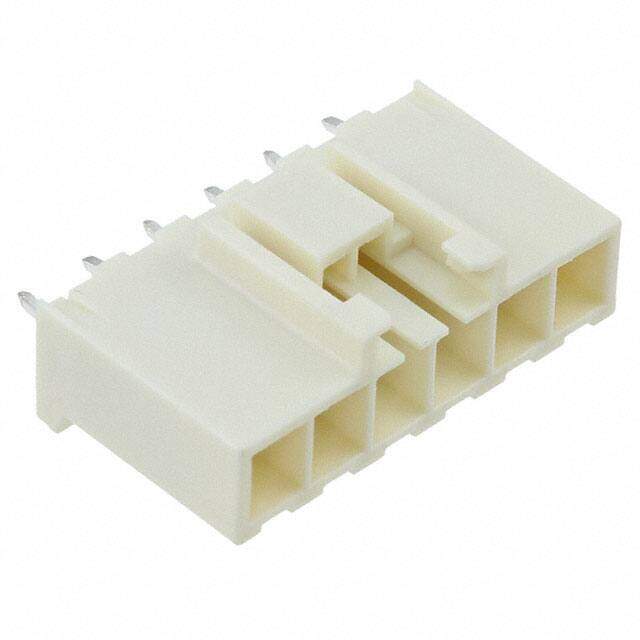

178489-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Power to the Board UP 3.96 6P TAB HDR NAT TYPE 1
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.276
≥1 USD $1.276
≥10 USD $1.1924
≥100 USD $1.025904
≥500 USD $0.809653
≥1000 USD $0.732019
≥3000 USD $0.686338
Inventory: 1562
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Rectangular
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Nylon
Technical
Operating Temperature -30°C~105°C
Packaging Bulk
Published 1997
Series Universal Power
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Termination Kinked Pin, Solder
Connector Type Header
Applications General Purpose
Number of Rows 1
Voltage - Rated 50V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Tab
Mixed Contacts NO
Current Rating (Amps) Varies by WireGAuge
Orientation Vertical
Depth 9.9mm
Insulation Height 0.551 14.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 12A
Pitch - Mating 0.156 3.96mm
Contact Length - Post 0.150 3.81mm
Shrouding Shrouded - 4 Wall
Contact Gender MALE
Housing Color Natural
Empty Shell NO
Operating Supply Voltage 50V
ELV Compliant
Max Voltage Rating (AC) 600V
Sealable No
Circuit Application Power
Number of Signal Positions 0
Contact Retention Without
Dimensions
Length 20.94mm
Plating Thickness 1μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
