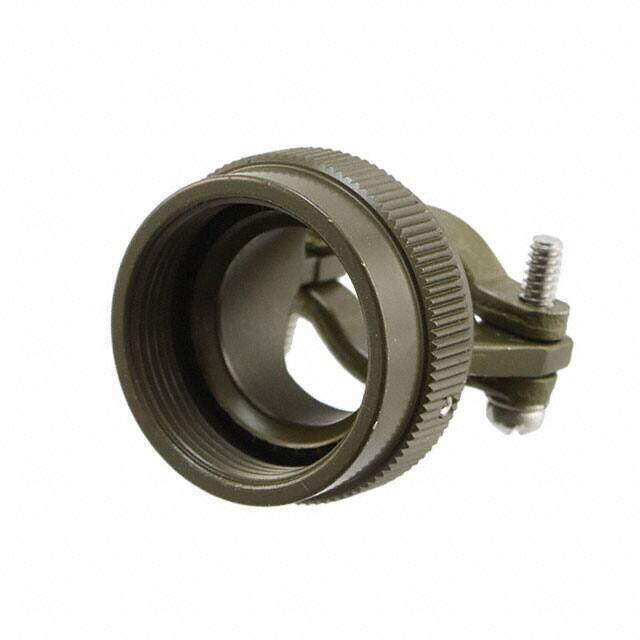

M85049/52S16W
RoHS
/
Package Aluminum
Category Connectors, Interconnects / Circular Connectors - Backshells and Cable Clamps
Description
Circular MIL Spec Strain Reliefs & Adapters ST BACKSHELL SZ 16 STRAIN RELIEF OD CAD
PDF
/
Buying Options
Total Price: USD $289.73
Unit Price: USD $289.7312
≥1 USD $289.7312
Inventory: 105
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Diameter - Outside 1.385 (35.18mm)
Technical
Cable Exit 180°
Wire/Cable Diameter 15.9 mm
Cable Opening 0.501 ~ 0.626 (12.73mm ~ 15.90mm)
Plating Cadmium
Shell Size - Insert 16 19
Military Standard MIL-DTL-5015
Shielding Unshielded
Orientation Straight
Color Olive Drab
Type Cable Clamp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Clamp Screws, Self-Locking
Series Military, SAE AS85049
Published 2008
Physical
Body Material Aluminium
Material Aluminum Alloy
Package / Case Aluminum
Mount Cable
Supply Chain
Factory Lead Time 12 Weeks
