RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

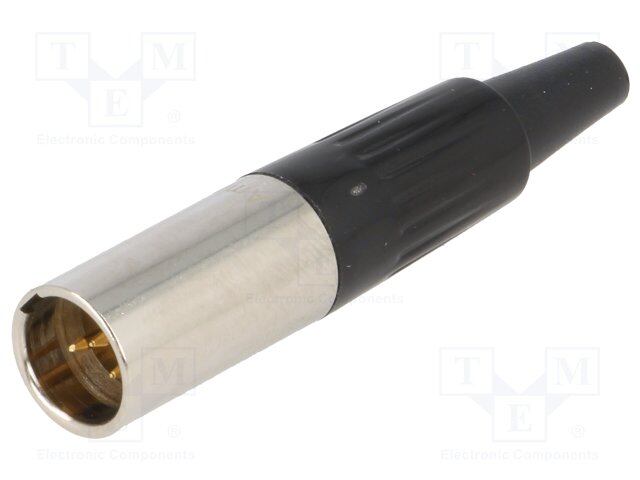

XLR Connectors 4 ML CONT NI PLTD
PDF
/
Buying Options
Total Price: USD $4.99
Unit Price: USD $4.9896
≥1 USD $4.9896
≥10 USD $4.51528
≥100 USD $4.265184
≥500 USD $4.161168
≥1000 USD $3.953136
≥3000 USD $3.662982
Inventory: 1009
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Gold, Silver
Mount Cable
Mounting Type Free Hanging (In-Line)
Number of Pins 4
Shell Material Brass
Housing Material Zinc
Insert Material Polyphenylene Sulfide (PPS)
Backshell Material, Plating Polyacrylonitrile Butadiene Styrene (ABS)
Technical
Operating Temperature -30°C~80°C
Published 2010
Series AG
Feature Backshell, Cable Clamp
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 4
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Color Silver
Applications Audio
Gender Male
Fastening Type Latch Holder
Contact Finish - Mating Gold
Current Rating (Amps) 5A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP40
Shell Finish Nickel
Shell Size - Insert Mini XLR
Cable Opening 0.138 (3.50mm)
Dimensions
Diameter 10.5mm
Length 52mm
Compliance
Material Flammability Rating UL94 HB
RoHS Status ROHS3 Compliant
