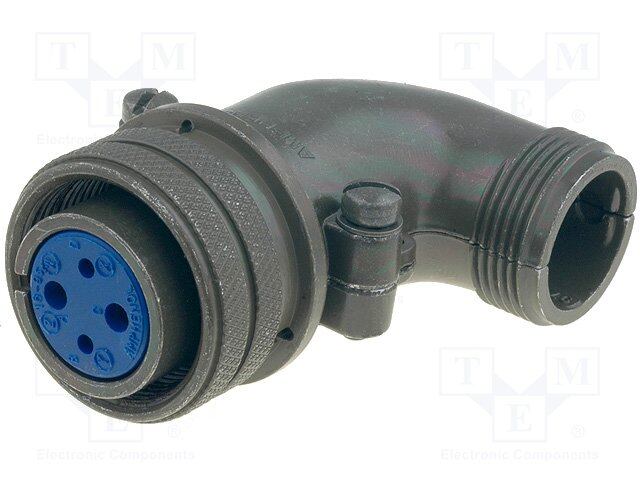

97-3108B16-9S image
Favorite
97-3108B16-9S image
Favorite
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description Circular Connector
PDF
/
Buying Options
Total Price: USD $137.11
Unit Price: USD $137.109933
≥1 USD $137.109933
≥10 USD $129.348995
≥100 USD $122.02736
≥500 USD $115.120144
≥1000 USD $108.603907
Inventory: 8224
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status Non-RoHS Compliant
Radiation Hardening No

Technical

Plating Cadmium, Chromate
Contact Style Socket
Contact Gender Female
Approval Agency CSA, UL
Shell Size - Insert 16-9
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-5015
Shielding Unshielded
Orientation N (Normal)
Contact Finish - Mating Silver
Voltage - Rated DC 700V
Fastening Type Threaded
Applications Automotive, Industrial
Color Olive Drab
Number of Positions 4
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Coupling Nut
Series 97
Published 2005
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium
Insert Material Diallyl Phthalate (DAP)
Housing Material Aluminium
Shell Material Aluminum Alloy
Package / Case Metal
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable, Free Hanging
Contact Material Copper Alloy
