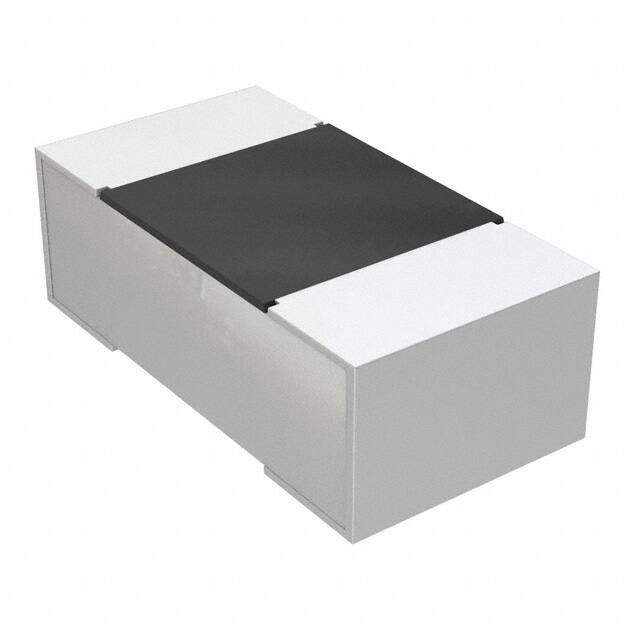

M32159B11MS3
RoHS
/
Package 0402 (1005 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0402 (1005Metric) FIXED RESISTOR Military MIL-PRF-32159RCZ0402 0.039Lx0.020W 1.00mmx0.50mm 0.04W 0Ohm Jumper
PDF
/
Buying Options
Total Price: USD $2
Unit Price: USD $1.9976
≥1 USD $1.9976
≥10 USD $1.67992
≥100 USD $1.641024
≥500 USD $1.544576
≥1000 USD $1.280664
≥3000 USD $1.158362
Inventory: 1157
Minimum: 1
-
+
Technical Details
Physical
Package / Case 0402 (1005 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~150°C
Packaging Cut Tape (CT)
Published 2011
Series Military, MIL-PRF-32159, RCZ0402
Size / Dimension 0.039Lx0.020W 1.00mmx0.50mm
Tolerance Jumper
JESD-609 Code e0
Feature Military
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Resistance 0Ohm
Terminal Finish Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.04W
Packing Method TR, Plastic, 7 Inch
Max Power Dissipation 40mW
Construction Chip
Resistor Type FIXED RESISTOR
Reach Compliance Code unknown
Case Code (Metric) 1005
Rated Power Dissipation (P) 0.04W
Case Code (Imperial) 0402
Failure Rate M (1%)
Dimensions
Height 406.4μm
Height Seated (Max) 0.033 0.84mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
