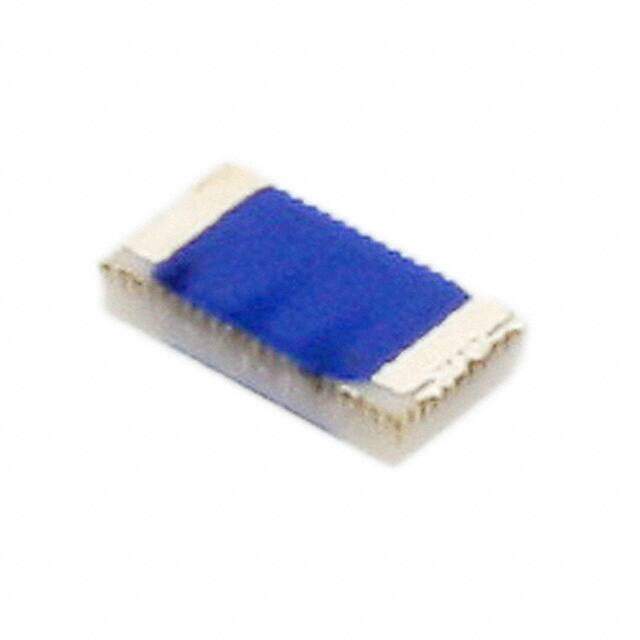

D55342E07B100ECWS image
Favorite
D55342E07B100ECWS image
Favorite

D55342E07B100ECWS

Vishay Dale
RoHS
/
Package 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description 1206 (3216Metric) FIXED RESISTOR Military MIL-PRF-55342RM1206 0.126Lx0.063W 3.20mmx1.60mm 0.25W 1/4W 100kOhm ±25ppm/C
PDF
/
Inventory: 7076
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Height Seated (Max) 0.033 0.84mm
Height 838.2μm

Technical

Working Voltage 100V
Resistor Type FIXED RESISTOR
Construction Rectangular
Max Power Dissipation 250mW
Packing Method WAFFLE PACK
Additional Feature LASER TRIMMABLE, NON-INDUCTIVE
Power (Watts) 0.25W 1/4W
Composition Thin Film
Terminal Finish Tin/Lead (Sn60Pb40) - with Nickel (Ni) barrier
Resistance 100kOhm
Temperature Coefficient ±25ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
Feature Military, Non-Inductive
JESD-609 Code e0
Tolerance ±1%
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series Military, MIL-PRF-55342, RM1206
Published 2016
Packaging Tray
Operating Temperature -55°C~150°C

Physical

Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 1206 (3216 Metric)

Supply Chain

Factory Lead Time 12 Weeks
