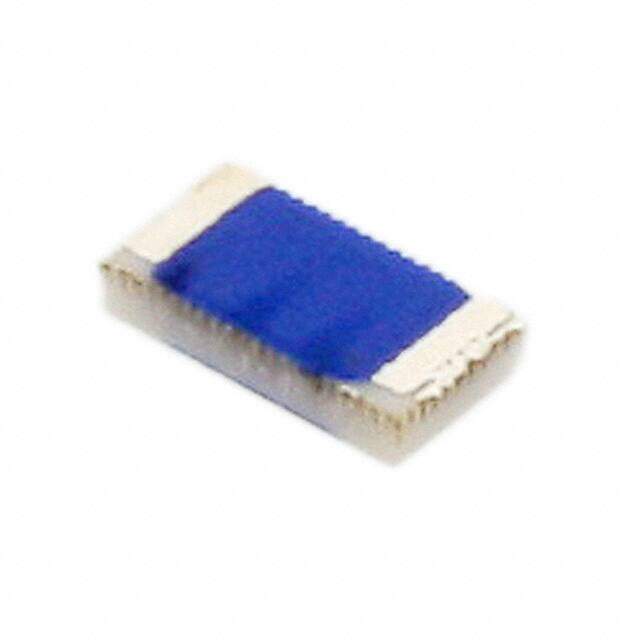

HVF1206T1003FE
RoHS
/
Package 1206 (3216 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
1206 (3216Metric) FIXED RESISTOR HVF 0.128Lx0.063W 3.25mmx1.60mm 0.3W 100kOhm ±100ppm/C
PDF
/
Inventory: 3451
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.028 0.71mm
Height 711.2μm
Technical
Case Code (Imperial) 1206
Rated Power Dissipation (P) 0.3W
Case Code (Metric) 3216
Resistor Type FIXED RESISTOR
Construction Chip
Technology RUTHENIUM OXIDE
Max Power Dissipation 300mW
Voltage - Rated DC 1.5kV
Power Rating 300mW
Subcategory FIXED RESISTOR
Voltage - Rated 1.5kV
Power (Watts) 0.3W
Composition Thick Film
Terminal Finish Silver/Palladium (Ag/Pd)
Resistance 100kOhm
Temperature Coefficient ±100ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature High Voltage, Moisture Resistant, Non-Magnetic
JESD-609 Code e4
Tolerance ±1%
Size / Dimension 0.128Lx0.063W 3.25mmx1.60mm
Series HVF
Published 2014
Packaging Bulk
Operating Temperature -55°C~200°C
Physical
Terminal Shape ONE SURFACE
Package / Case 1206 (3216 Metric)
Mount Surface Mount
Supply Chain
Factory Lead Time 21 Weeks
