MMB02070C2491FB200
RoHS
RoHS compliant
RoHS compliantPackage MELF, 0207
Category Resistors / Chip Resistor - Surface Mount
Description

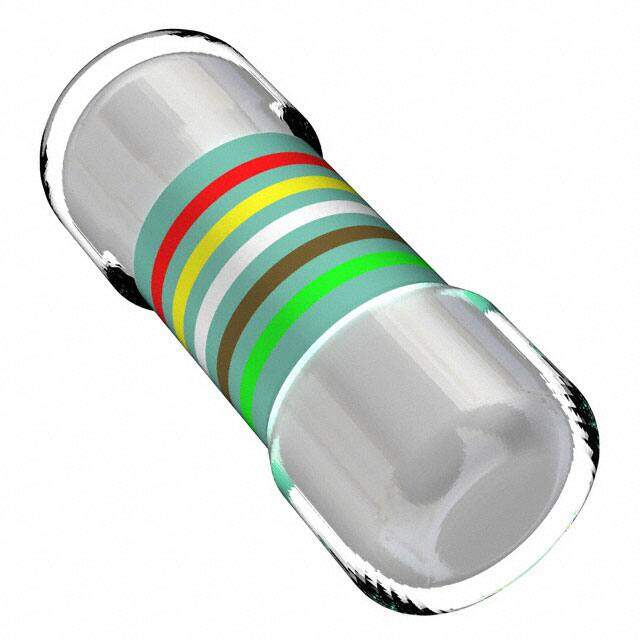

MELF 0207 FIXED RESISTOR MMB - Professional 0.087Diax0.228L 2.20mmx5.80mm 2.49kOhm ±50ppm/C ±1%
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.2376
≥1 USD $0.2376
≥10 USD $0.17776
≥100 USD $0.13904
≥500 USD $0.12408
≥1000 USD $0.09372
≥3000 USD $0.08257
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Diameter 2.2mm
Technical
Working Voltage 350V
Operating Supply Voltage 300V
Rated Power Dissipation (P) 0.4W
Military Standard Not
Resistor Type FIXED RESISTOR
Construction Cylindrical
Max Power Dissipation 1W
Packing Method TR, Blister, 7 Inch
Additional Feature ANTI-SULFUR, CECC40401-803, RATED AC VOLTAGE: 350V
Composition Thin Film
Resistance 2.49kOhm
Temperature Coefficient ±50ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Anti-Sulfur, Automotive AEC-Q200
Tolerance ±1%
Size / Dimension 0.087Diax0.228L 2.20mmx5.80mm
Series MMB - Professional
Published 2017
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case MELF, 0207
Contact Plating Tin
Supply Chain
Factory Lead Time 14 Weeks
