MLF12DTT2K49
RoHS
RoHS compliant
RoHS compliantPackage MELF, 0207
Category Resistors / Chip Resistor - Surface Mount
Description

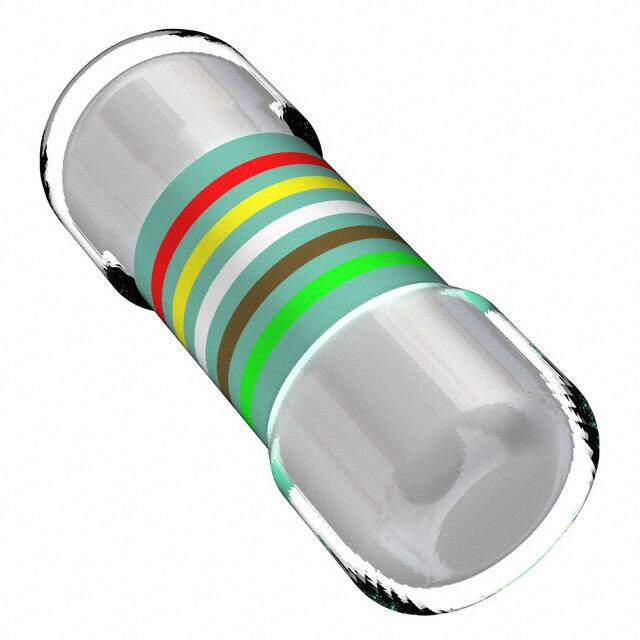

MELF 0207 FIXED RESISTOR MLF 0.087Diax0.232L 2.20mmx5.90mm 0.5W 1/2W 2.49kOhm ±10ppm/C
PDF
/
Inventory: 3602
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Surface Mount YES
Package / Case MELF, 0207
Mounting Feature SURFACE MOUNT
Terminal Shape WRAPAROUND
Supply Chain
Factory Lead Time 12 Weeks
Compliance
RoHS Status ROHS3 Compliant
Technical
Working Voltage 300V
Rated Power Dissipation (P) 0.5W
Resistor Type FIXED RESISTOR
Construction Cylindrical
Technology METAL FILM
Packing Method TR, Embossed Plastic, 7 Inch
Power (Watts) 0.5W 1/2W
Composition Thin Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 2.49kOhm
Temperature Coefficient ±10ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±0.5%
Size / Dimension 0.087Diax0.232L 2.20mmx5.90mm
Series MLF
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
