MC102822505JE
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Resistors / Chip Resistor - Surface Mount
Description

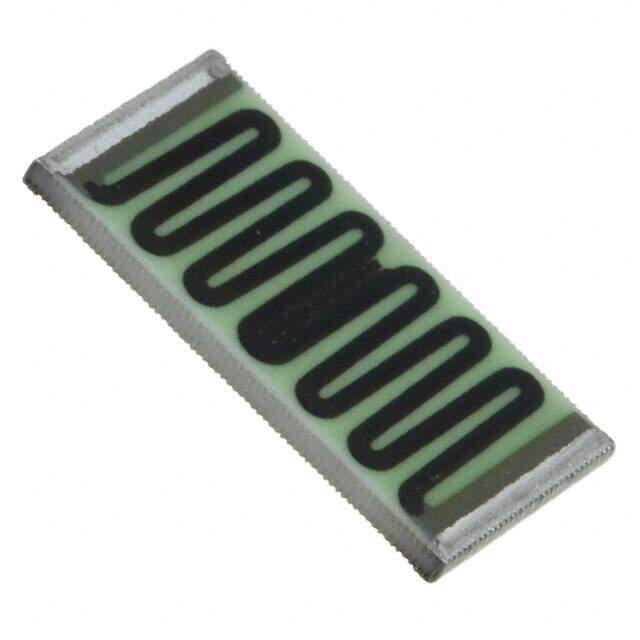

Nonstandard FIXED RESISTOR Macrochip 0.500Lx0.250W 12.70mmx6.35mm 1.5W 25MOhm ±50ppm/C
PDF
/
Buying Options
Total Price: USD $5.23
Unit Price: USD $5.2272
≥1 USD $5.2272
≥10 USD $3.33256
≥100 USD $2.567312
≥500 USD $2.075744
≥1000 USD $1.925546
≥3000 USD $1.788978
Inventory: 1189
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height Seated (Max) 0.142 3.60mm
Height 889μm
Technical
Case Code (Imperial) 5025
Rated Power Dissipation (P) 1W
Resistor Type FIXED RESISTOR
Depth 6.35mm
Max Power Dissipation 1.5W
Packing Method TR
Voltage - Rated DC 5kV
Power Rating 1.5W
Subcategory Fixed Resistors
Additional Feature NON-INDUCTIVE, PRECISION
Voltage - Rated 5kV
Composition Thick Film
Terminal Finish Silver/Palladium (Ag/Pd)
Resistance 25MOhm
Temperature Coefficient ±50ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature High Voltage, Non-Inductive
JESD-609 Code e4
Tolerance ±5%
Size / Dimension 0.500Lx0.250W 12.70mmx6.35mm
Series Macrochip
Published 2014
Packaging Bulk
Operating Temperature -55°C~180°C
Physical
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
