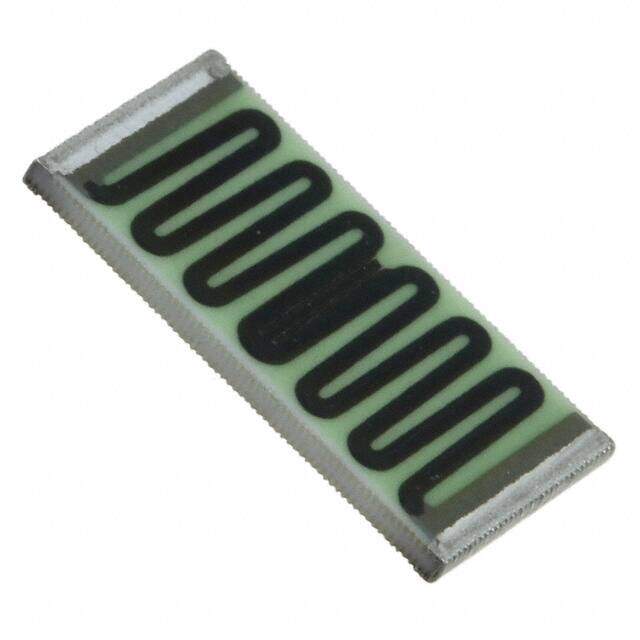

HVC4020V2505JET
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Resistors / Chip Resistor - Surface Mount
Description
Nonstandard FIXED RESISTOR HVC 0.402Lx0.201W 10.20mmx5.10mm 1.5W 25MOhm ±50ppm/C
PDF
/
Buying Options
Total Price: USD $4.13
Unit Price: USD $4.125881
≥1 USD $4.125881
≥10 USD $3.892333
≥100 USD $3.672022
≥500 USD $3.464169
≥1000 USD $3.268084
Inventory: 1212
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height Seated (Max) 0.031 0.80mm
Height 787.4μm
Technical
Resistor Type FIXED RESISTOR
Max Power Dissipation 1.5W
Voltage - Rated DC 4kV
Power Rating 1.5W
Voltage - Rated 4kV
Composition Thick Film
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 25MOhm
Temperature Coefficient ±50ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature High Voltage
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.402Lx0.201W 10.20mmx5.10mm
Series HVC
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Package / Case Nonstandard
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
