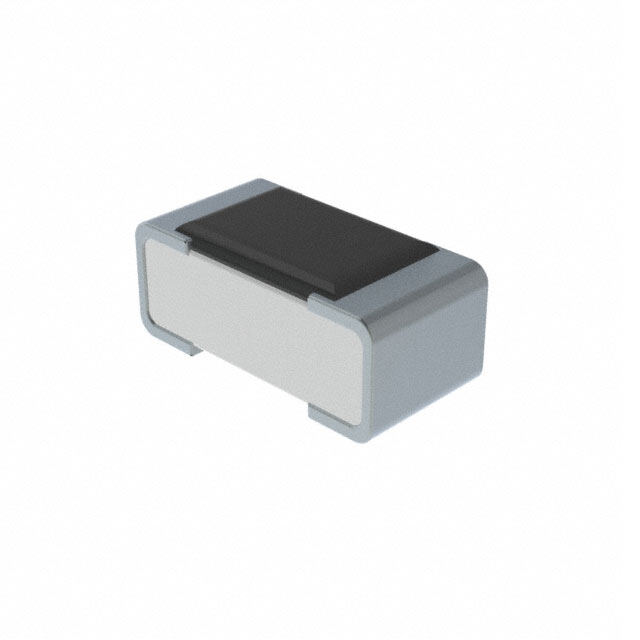

RK73B1HTTC135J
RoHS
RoHS compliant
RoHS compliantPackage 0201 (0603 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0201 (0603Metric) FIXED RESISTOR RK73B 0.024Lx0.012W 0.60mmx0.30mm 0.05W 1/20W 1.3MOhm ±200ppm/C
PDF
/
Buying Options
Total Price: USD $0
Unit Price: USD $0.003752
≥1 USD $0.003752
≥10 USD $0.002987
≥100 USD $0.002561
Inventory: 1186
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Package / Case 0201 (0603 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series RK73B
Size / Dimension 0.024Lx0.012W 0.60mmx0.30mm
Tolerance ±5%
JESD-609 Code e3
Feature Automotive AEC-Q200, Moisture Resistant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±200ppm/°C
Resistance 1.3MOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.05W 1/20W
Voltage - Rated 25V
Power Rating 50mW
Voltage - Rated DC 25V
Packing Method TR, PRESSED PAPER, 7 INCH
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 0603
Rated Power Dissipation (P) 0.05W
Case Code (Imperial) 0201
Dimensions
Height 230μm
Height Seated (Max) 0.010 0.26mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
