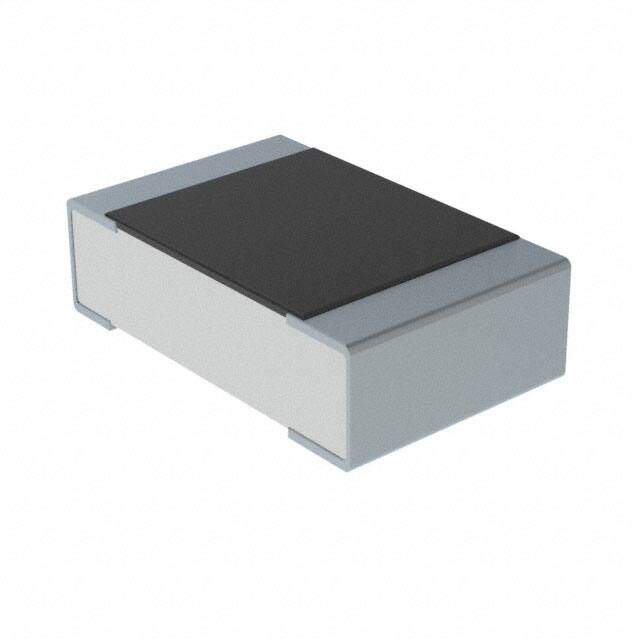

HV732ATTD154G
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Resistors / Chip Resistor - Surface Mount
Description
0805 (2012Metric) FIXED RESISTOR HV73 0.079Lx0.049W 2.00mmx1.25mm 0.125W 1/8W 150kOhm ±100ppm/C
PDF
/
Inventory: 6686
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Package / Case 0805 (2012 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Mounting Feature SURFACE MOUNT
Weight 5.499807mg
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series HV73
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±2%
JESD-609 Code e3
Feature High Voltage, Moisture Resistant
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±100ppm/°C
Resistance 150kOhm
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Composition Thick Film
Power (Watts) 0.125W 1/8W
Voltage - Rated 400V
Power Rating 125mW
Voltage - Rated DC 400V
Packing Method TR, Punched Paper, 7 Inch
Construction Rectangular
Resistor Type FIXED RESISTOR
Case Code (Metric) 2012
Case Code (Imperial) 0805
Dimensions
Height 500μm
Height Seated (Max) 0.024 0.60mm
Compliance
RoHS Status ROHS3 Compliant
