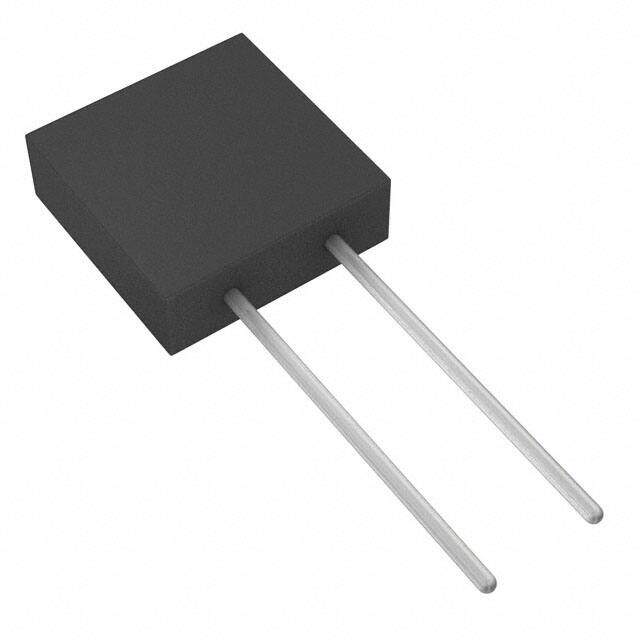

ACR06D103KGS
RoHS
/
Package Radial
Category Capacitors / Ceramic Capacitors
Description
Radial CERAMIC CAPACITOR ACR Indust C0G HT200C 100V 10000pF ±10% C0G NP0
PDF
/
Buying Options
Total Price: USD $50.17
Unit Price: USD $50.172474
≥1 USD $50.172474
≥200 USD $19.416478
≥500 USD $18.73377
≥1000 USD $18.396355
Inventory: 5721
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 43 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Technical
Operating Temperature -55°C~200°C
Packaging Bulk
Published 2012
Series ACR Indust C0G HT200C
Size / Dimension 0.300Lx0.100W 7.62mmx2.54mm
Tolerance ±10%
JESD-609 Code e4
Feature High Temperature
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient C0G NP0
Terminal Finish Gold (Au)
Applications General Purpose
Capacitance 10000pF
Voltage - Rated DC 100V
Reach Compliance Code not_compliant
Lead Pitch 5.08mm
Capacitor Type CERAMIC CAPACITOR
Dielectric C0G
Lead Spacing 0.200 5.08mm
Temperature Characteristics Code C0G
Size Code 3010
Lead Style Straight
Custom Capabilities Other Tolerances Available Upon Request
Dimensions
Height 7.62mm
Height Seated (Max) 0.300 7.62mm
Width 2.54mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
