B37981F1103K000
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Capacitors / Ceramic Capacitors
Description

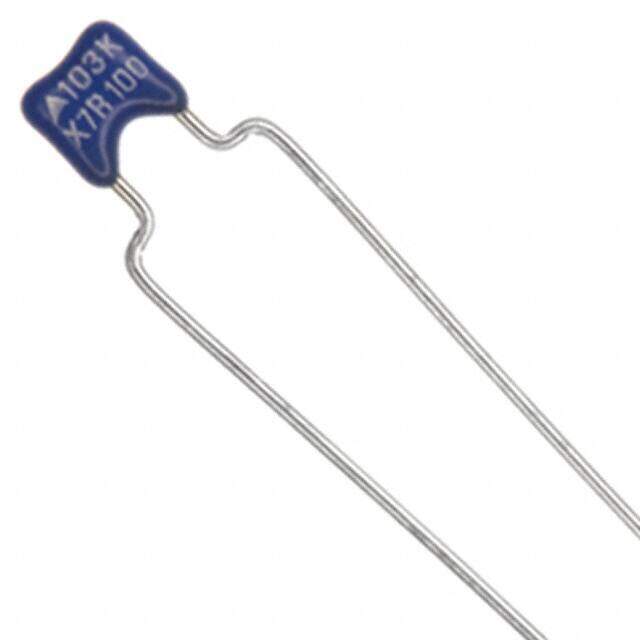

Radial CERAMIC CAPACITOR B37981F 100V 10000pF ±10% X7R
PDF
/
Inventory: 9037
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.098 2.50mm
Technical
Lead Style Formed Leads
Rated (DC) Voltage (URdc) 100V
Multilayer Yes
Temperature Characteristics Code X7R
Lead Spacing 0.197 5.00mm
Capacitor Type CERAMIC CAPACITOR
Capacitance 10000pF
HTS Code 8532.24.00.60
Voltage - Rated 100V
Applications Automotive
Terminal Finish Tin (Sn)
Temperature Coefficient X7R
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.217Lx0.197W 5.50mmx5.00mm
Series B37981F
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Dielectric Material CERAMIC
Terminal Shape WIRE
Surface Mount NO
Package / Case Radial
Mounting Type Through Hole
