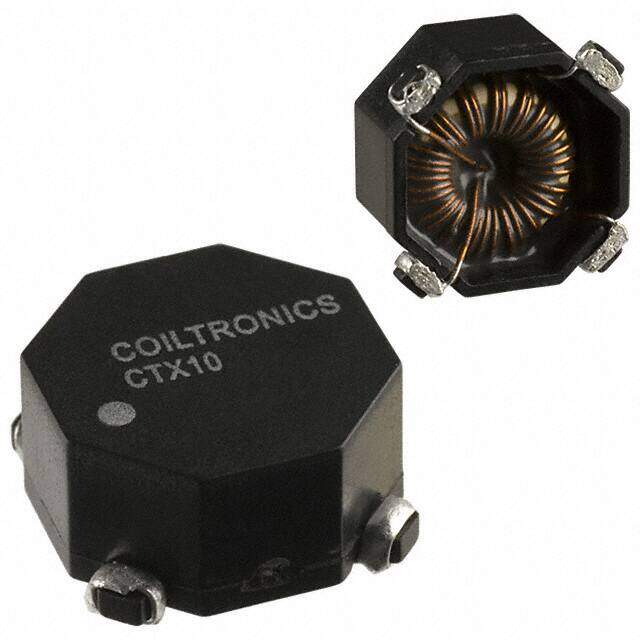

CTX10-2-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
OCTA-PAC? Nonstandard 0.450Lx0.450W 11.43mmx11.43mm 10.58muH
PDF
/
Buying Options
Total Price: USD $5.98
Unit Price: USD $5.984
≥1 USD $5.984
≥10 USD $4.84528
≥100 USD $4.30672
≥500 USD $4.06736
≥1000 USD $3.768336
≥3000 USD $3.708496
Inventory: 1072
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 4
Weight 1.360777g
Core Material Metal
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2007
Series OCTA-PAC?
Size / Dimension 0.450Lx0.450W 11.43mmx11.43mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Resistance 31mOhm
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Shielding Unshielded
Depth 11.43mm
Current Rating 2.5A
Military Standard Not
Inductance 10.58 μH
Test Frequency 100kHz
Max DC Current 2.5A
DC Resistance (DCR) - Parallel 31mOhm Max
Inductance Tolerance 20%
RMS Current (Irms) 2.5A
Inductance - Parallel 10.58 μH
Inductance - Series 42.3 μH
Number of Coils 2
DC Resistance (DCR) - Series 125mOhm Max
Current Rating - Series 1.25A
Current Rating - Parallel 2.5A
Inductance - Connected In Series 42.3μH
Inductance - Connected In Parallel 10.58μH
Dimensions
Height 0.235 5.97mm
Length 11.43mm
Width 11.43mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
