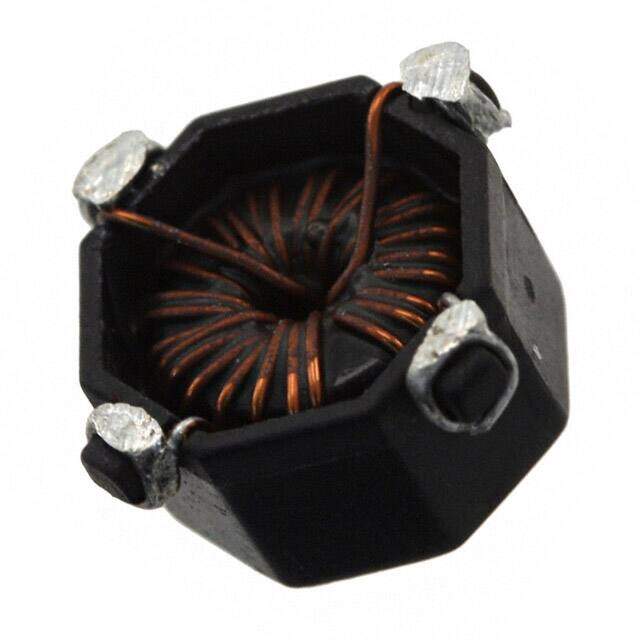

CTX10-1A-R
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Arrays, Signal Transformers
Description
INDUCT ARRAY 2 COIL 10.58UH SMD
PDF
/
Inventory: 4201
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2006
Series OCTA-PAC? PLUS
Size / Dimension 0.450Lx0.450W 11.43mmx11.43mm
Tolerance ±25%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Shielding Unshielded
DC Resistance (DCR) - Parallel 46mOhm Max
Number of Coils 2
DC Resistance (DCR) - Series 183mOhm Max
Current Rating - Series 1.42A
Current Rating - Parallel 2.84A
Inductance - Connected In Series 42.3μH
Inductance - Connected In Parallel 10.58μH
Current Saturation - Parallel 2.5A
Current Saturation - Series 1.25A
Dimensions
Height 0.165 4.19mm
