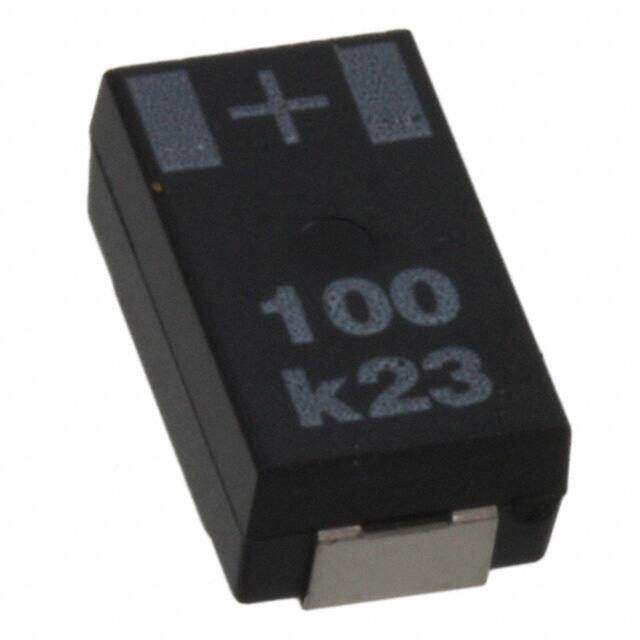

8SW100M image
Favorite
8SW100M image
Favorite

8SW100M

Rubycon
RoHS
RoHS RoHS compliant
Package 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description 2917 (7343Metric) PC-CON SW 8V 100muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Buying Options
Total Price: USD $5.57
Unit Price: USD $5.573261
≥1 USD $5.573261
≥200 USD $2.224053
≥500 USD $2.149217
≥1000 USD $2.112456
Inventory: 7481
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Length 7.3mm
Height Seated (Max) 0.106 2.70mm
Height 2.7mm

Technical

Ripple Current (AC) 2.5A
Ripple Current @ High Frequency 2.5A @ 100kHz
Tan Delta 0.1
Life (Hours) 2000 hours
Ripple Current 2.5A
Leakage Current 0.032mA
Lifetime @ Temp 2000 Hrs @ 105°C
Rated (DC) Voltage (URdc) 8V
Polarity POLARIZED
ESR (Equivalent Series Resistance) 18mOhm
Case Code (Imperial) 2917
Case Code (Metric) 7343
Depth 4.3mm
Packing Method TR
Voltage - Rated DC 8V
Capacitance 100μF
Applications General Purpose
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Polymer
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Tolerance ±20%
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Series PC-CON, SW
Published 2012
Packaging Cut Tape (CT)
Operating Temperature -55°C~105°C

Physical

Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm
Terminal Shape WRAPAROUND
Package / Case 2917 (7343 Metric)
Mounting Type Surface Mount
Mount Surface Mount
