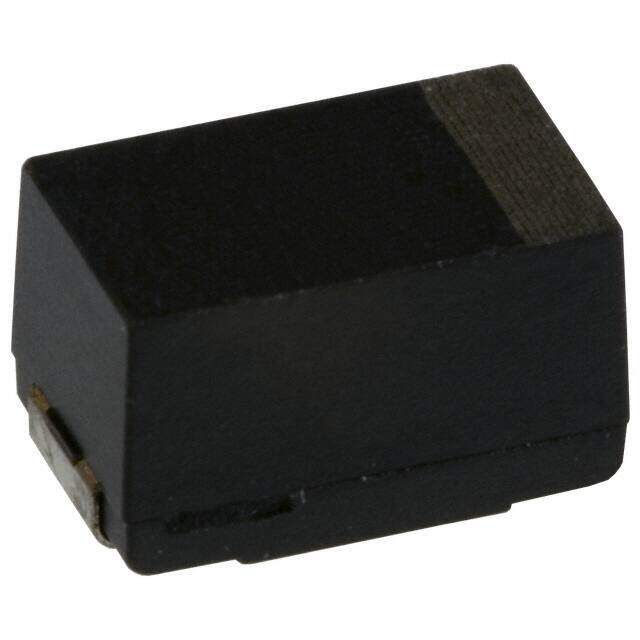

EEF-UE0K101ER
RoHS
/
Package 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) SP-Cap UE 8V 100muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Inventory: 4227
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Terminal Shape WRAPAROUND
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2013
Series SP-Cap UE
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Applications General Purpose
Capacitance 100μF
Voltage - Rated DC 8V
Packing Method BULK
Depth 4.3mm
ESR (Equivalent Series Resistance) 12mOhm
Polarity POLARIZED
Rated (DC) Voltage (URdc) 8V
Lifetime @ Temp 1000 Hrs @ 105°C
Leakage Current 3μA
Ripple Current 3.3A
Life (Hours) 1000 hours
Tan Delta 0.1
Ripple Current @ High Frequency 3.3A @ 100kHz
Dissipation Factor 0.1 %
Dimensions
Height 4.2mm
Height Seated (Max) 0.169 4.30mm
Length 7.3mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
