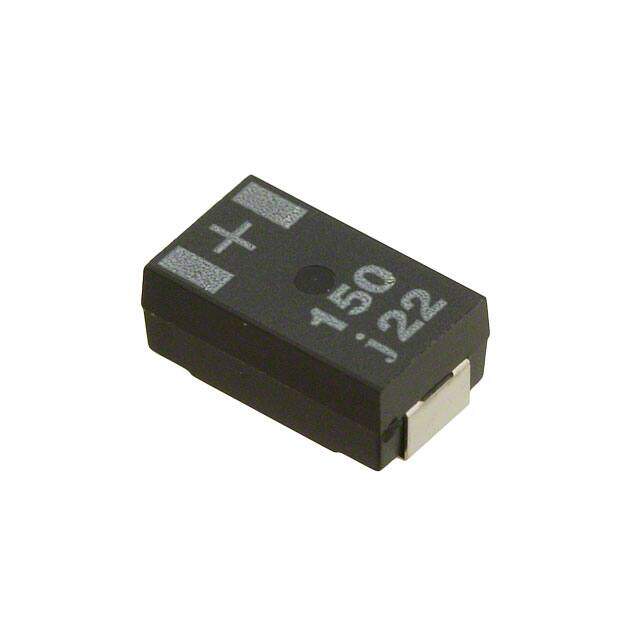

6SWZ150MR15 image
Favorite

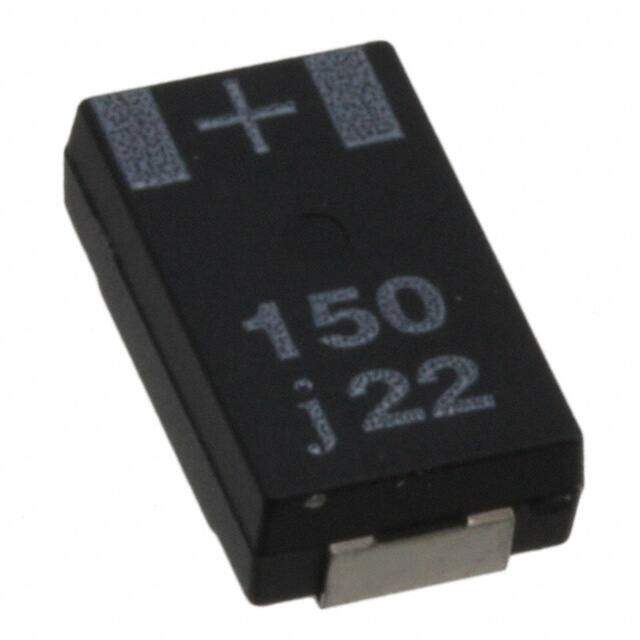

6SWZ150MR15 image
Favorite

6SWZ150MR15

Rubycon
RoHS
RoHS RoHS compliant
Package 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description 2917 (7343Metric) PC-CON SWZ 6.3V 150muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Inventory: 6507
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 4.3mm
Length 7.3mm
Height Seated (Max) 0.075 1.90mm
Height 1.9mm

Technical

Ripple Current (AC) 2.7A
Ripple Current @ High Frequency 2.7A @ 100kHz
Tan Delta 0.1
Life (Hours) 2000 hours
Ripple Current 2.7A
Leakage Current 0.036mA
Lifetime @ Temp 2000 Hrs @ 105°C
Rated (DC) Voltage (URdc) 6V
Polarity POLARIZED
ESR (Equivalent Series Resistance) 15mOhm
Case Code (Imperial) 2917
Case Code (Metric) 7343
Packing Method TR
Voltage - Rated DC 6.3V
Capacitance 150μF
Applications General Purpose
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Polymer
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Tolerance ±20%
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Series PC-CON, SWZ
Published 2005
Packaging Cut Tape (CT)
Operating Temperature -55°C~105°C

Physical

Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm
Terminal Shape WRAPAROUND
Package / Case 2917 (7343 Metric)
Mounting Type Surface Mount
Mount Surface Mount
