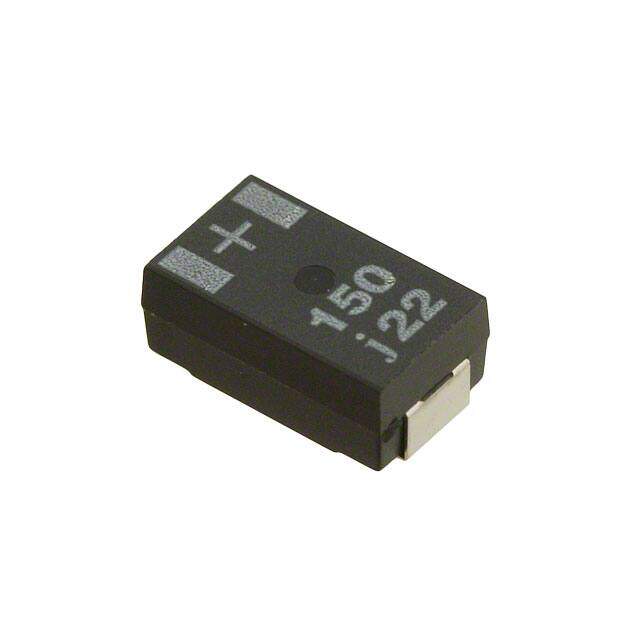

6SW150M image
Favorite
6SW150M image
Favorite

6SW150M

Rubycon
RoHS
RoHS RoHS compliant
Package 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description 2917 (7343Metric) PC-CON SW 6.3V 150muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Inventory: 3375
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Terminal Shape WRAPAROUND
Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm

Technical

Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2008
Series PC-CON, SW
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Tolerance ±20%
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Type Polymer
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications General Purpose
Capacitance 150μF
Voltage - Rated DC 6.3V
Packing Method TR
Depth 4.3mm
Case Code (Metric) 7343
Case Code (Imperial) 2917
ESR (Equivalent Series Resistance) 9mOhm
Polarity POLARIZED
Rated (DC) Voltage (URdc) 6V
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.036mA
Ripple Current 3.5A
Life (Hours) 2000 hours
Tan Delta 0.1
Ripple Current @ High Frequency 3.5A @ 100kHz
Ripple Current (AC) 3.5A

Dimensions

Height 2.9mm
Height Seated (Max) 0.114 2.90mm
Length 7.3mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
