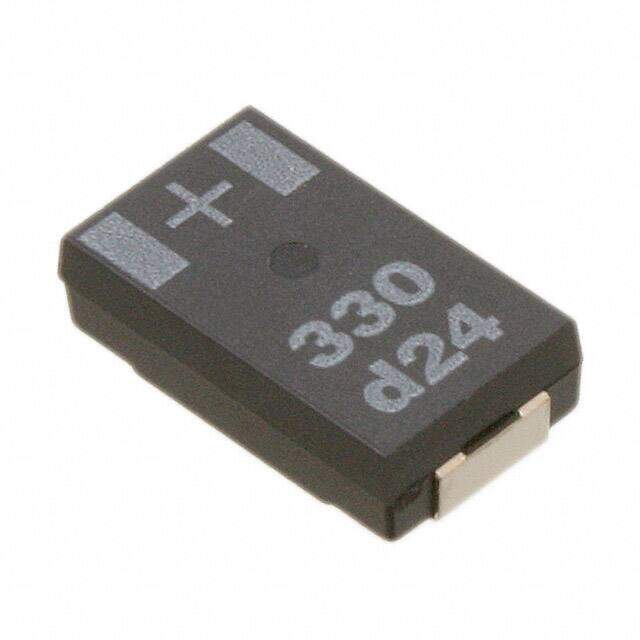

2SWZ330MR06
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) PC-CON SWZ 2V 330muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Inventory: 1525
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 4.3mm
Length 7.3mm
Height Seated (Max) 0.075 1.90mm
Height 1.9mm
Technical
Ripple Current (AC) 3.5A
Ripple Current @ High Frequency 3.5A @ 100kHz
Tan Delta 0.1
Life (Hours) 2000 hours
Ripple Current 3.5A
Leakage Current 0.0264mA
Lifetime @ Temp 2000 Hrs @ 105°C
Rated (DC) Voltage (URdc) 2V
Polarity POLARIZED
ESR (Equivalent Series Resistance) 6mOhm
Case Code (Imperial) 2917
Case Code (Metric) 7343
Packing Method TR
Voltage - Rated DC 2V
Capacitance 330μF
Applications General Purpose
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Type Polymer
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Tolerance ±20%
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Series PC-CON, SWZ
Published 2012
Packaging Cut Tape (CT)
Operating Temperature -55°C~105°C
Physical
Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm
Terminal Shape WRAPAROUND
Package / Case 2917 (7343 Metric)
Mounting Type Surface Mount
Mount Surface Mount
