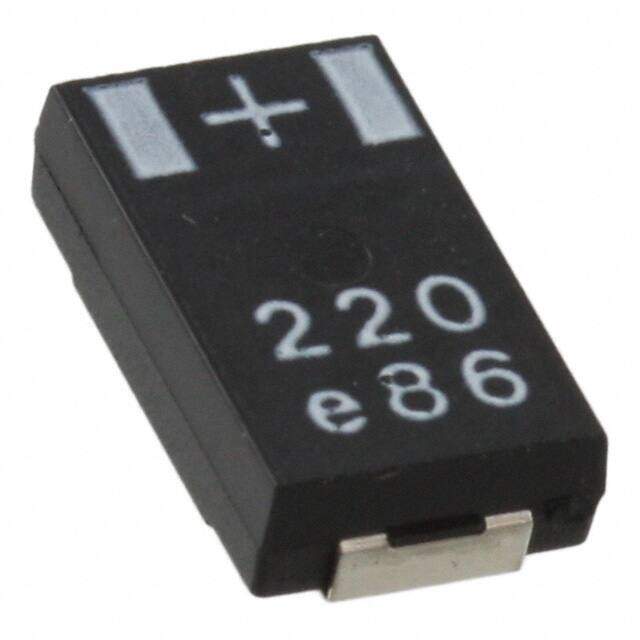

2SW330M
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) PC-CON SW 2V 330muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Buying Options
Total Price: USD $9.58
Unit Price: USD $9.5779
≥1 USD $9.5779
≥10 USD $7.85935
≥100 USD $7.6133
≥500 USD $7.3682
≥1000 USD $7.12215
Inventory: 1135
Minimum: 1
-
+
Technical Details
Physical
Dielectric Material Aluminium
Surface Mount Land Size 0.287Lx0.169W 7.30mmx4.30mm
Terminal Shape WRAPAROUND
Package / Case 2917 (7343 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Technical
Operating Temperature -55°C~105°C
Packaging Cut Tape (CT)
Published 2007
Series PC-CON, SW
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Tolerance ±20%
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Polymer
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications General Purpose
Capacitance 330μF
Voltage - Rated DC 2V
Packing Method TR
Depth 4.3mm
Case Code (Metric) 7343
Case Code (Imperial) 2917
ESR (Equivalent Series Resistance) 9mOhm
Polarity POLARIZED
Rated (DC) Voltage (URdc) 2V
Lifetime @ Temp 2000 Hrs @ 105°C
Leakage Current 0.0264mA
Ripple Current 3.5A
Life (Hours) 2000 hours
Tan Delta 0.1
Ripple Current @ High Frequency 3.5A @ 100kHz
Ripple Current (AC) 3.5A
Supply Chain
Factory Lead Time 20 Weeks
Dimensions
Height 7.3mm
Height Seated (Max) 0.114 2.90mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
