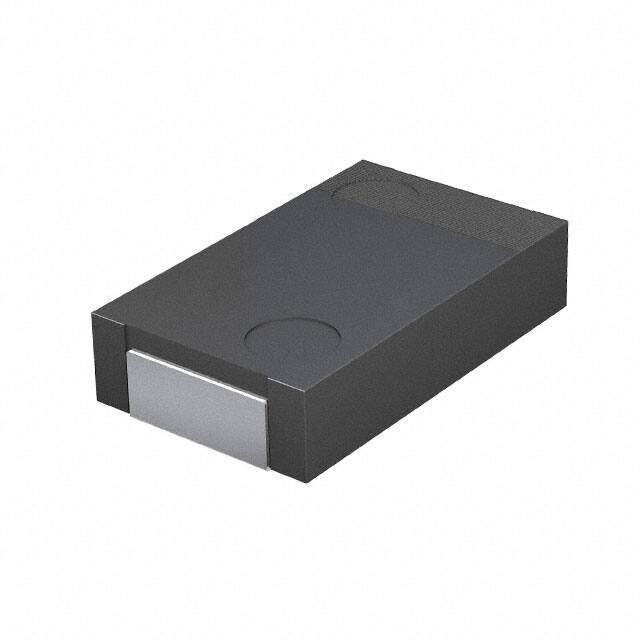

EEF-SR0E181R
RoHS
RoHS compliant
RoHS compliantPackage 2917 (7343 Metric)
Category Capacitors / Aluminum - Polymer Capacitors
Description
2917 (7343Metric) SP-Cap SR 2.5V 180muF ±20% 0.287Lx0.169W 7.30mmx4.30mm
PDF
/
Inventory: 9816
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.3mm
Length 7.3mm
Height Seated (Max) 0.039 1.00mm
Height 1mm
Technical
Ripple Current @ High Frequency 7.5A @ 100kHz
Life (Hours) 2000 hours
Ripple Current 7.5A
Leakage Current 45μA
Lifetime @ Temp 2000 Hrs @ 105°C
Voltage 2.5V
Polarity Polar
ESR (Equivalent Series Resistance) 6mOhm
Case Code (Imperial) 2917
Case Code (Metric) 7343
Depth 4.3mm
Voltage - Rated DC 2.5V
Capacitance 180μF
Voltage - Rated 2.5V
Applications General Purpose
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Type Polymer
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Tolerance ±20%
Size / Dimension 0.287Lx0.169W 7.30mmx4.30mm
Series SP-Cap, SR
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Weight 130.010913mg
Dielectric Material Aluminium
Package / Case 2917 (7343 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
