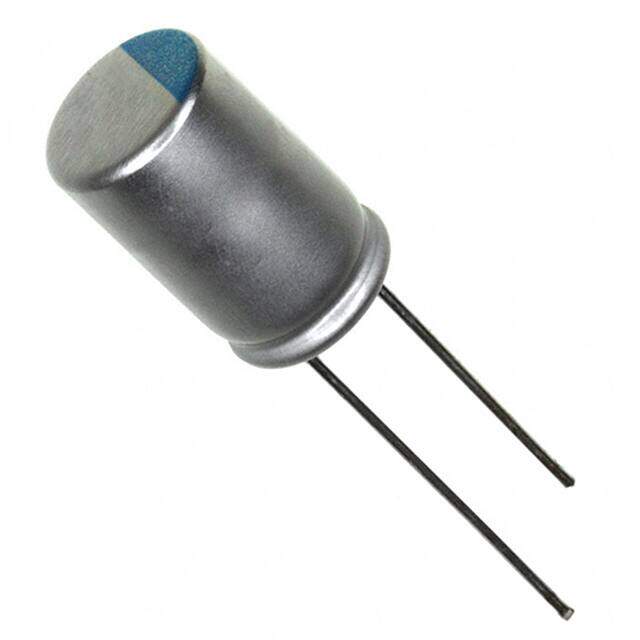

476ULG025MFF
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description
Radial Can ULG 25V 47muF ±20% 0.315Dia 8.00mm
PDF
/
Inventory: 7197
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2016
Series ULG
Size / Dimension 0.315Dia 8.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Polymer
Applications Decoupling
Voltage - Rated 25V
Capacitance 47μF
Reach Compliance Code unknown
Lead Pitch 3.5052mm
ESR (Equivalent Series Resistance) 45mOhm
Polarity Polar
Lead Spacing 0.138 3.50mm
Lifetime @ Temp 2000 Hrs @ 105°C
Ripple Current 1.94A
Life (Hours) 2000 hours
Ripple Current @ Low Frequency 97mA @ 120Hz
Ripple Current @ High Frequency 1.94A @ 100kHz
Dimensions
Height Seated (Max) 0.354 9.00mm
Compliance
RoHS Status ROHS3 Compliant
