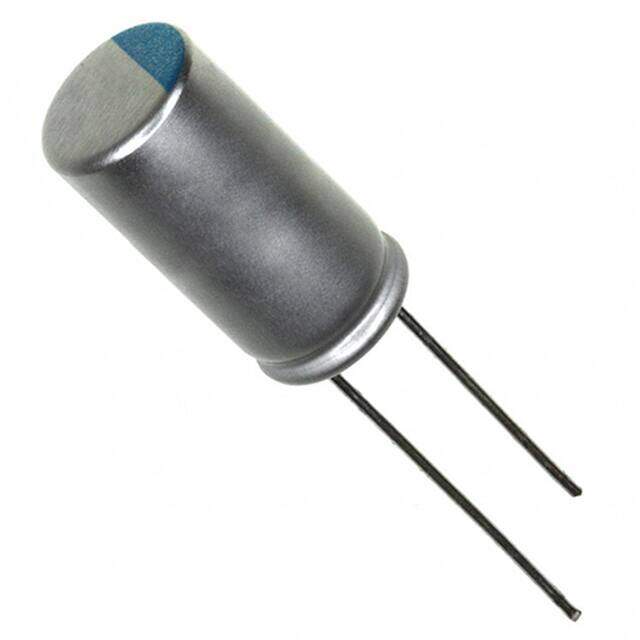

476ULR025MFF
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum - Polymer Capacitors
Description
Radial Can ULR 25V 47muF ±20% 0.315Dia 8.00mm
PDF
/
Inventory: 3427
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.354 9.00mm
Technical
Ripple Current @ High Frequency 2.1A @ 100kHz
Ripple Current @ Low Frequency 105mA @ 120Hz
Life (Hours) 2000 hours
Ripple Current 2.1A
Lifetime @ Temp 2000 Hrs @ 105°C
Lead Spacing 0.138 3.50mm
Polarity Polar
ESR (Equivalent Series Resistance) 36mOhm
Lead Pitch 3.5052mm
Capacitance 47μF
Voltage - Rated 25V
Applications Decoupling
Type Polymer
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.315Dia 8.00mm
Series ULR
Published 2016
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Dielectric Material ALUMINUM (WET)
Package / Case Radial, Can
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 22 Weeks
