861141485014
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description

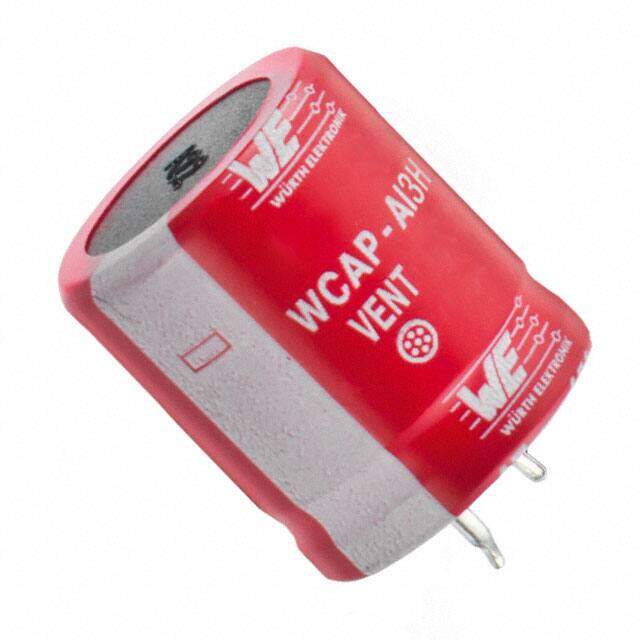

Radial Can - Snap-In WCAP-AI3H 450V 120muF ±20% 1.181Dia 30.00mm
PDF
/
Buying Options
Total Price: USD $5.17
Unit Price: USD $5.169696
≥1 USD $5.169696
≥10 USD $4.877071
≥100 USD $4.601012
≥500 USD $4.340579
≥1000 USD $4.094887
Inventory: 1141
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height Seated (Max) 1.102 28.00mm
Height 26mm
Diameter 30mm
Technical
Ripple Current @ High Frequency 1.104A @ 100kHz
Ripple Current @ Low Frequency 800mA @ 120Hz
Life (Hours) 3000 hours
Polarization Polar
Ripple Current 800mA
Lifetime @ Temp 3000 Hrs @ 105°C
Lead Spacing 0.394 10.00mm
Polarity Polar
Lead Pitch 10.0076mm
Voltage - Rated DC 450V
Capacitance 120μF
Voltage - Rated 450V
Applications General Purpose
Min Operating Temperature -25°C
Max Operating Temperature 105°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 1.181Dia 30.00mm
Series WCAP-AI3H
Packaging Tray
Operating Temperature -25°C~105°C
Physical
Package / Case Radial, Can - Snap-In
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 24 Weeks
Alternative Model
