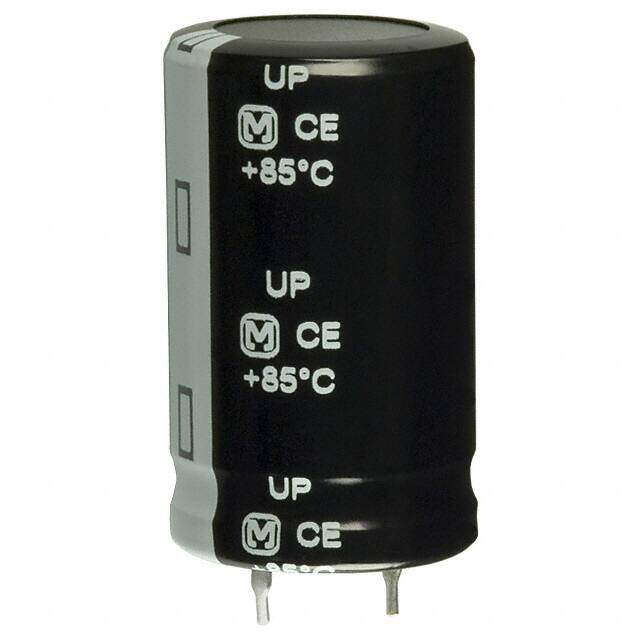

ECO-S2WP121BA
RoHS
/
Package Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR TS-UP 450V 120muF ±20% 0.866Dia 22.00mm
PDF
/
Inventory: 8911
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Number of Pins 2
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2010
Series TS-UP
Size / Dimension 0.866Dia 22.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Resistance 1.382Ohm
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 120μF
Voltage - Rated DC 450V
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Length 6.3mm
ESR (Equivalent Series Resistance) 1.382Ohm @ 120Hz
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 3000 Hrs @ 85°C
Leakage Current 0.69714mA
Ripple Current 1.04A
Test Frequency 120Hz
Polarization Polar
Life (Hours) 3000 hours
Tan Delta 0.15
Ripple Current @ Low Frequency 1.04A @ 120Hz
Ripple Current @ High Frequency 1.456A @ 100kHz
Dissipation Factor 15 %
Dimensions
Diameter 22mm
Height 40mm
Height Seated (Max) 1.575 40.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant

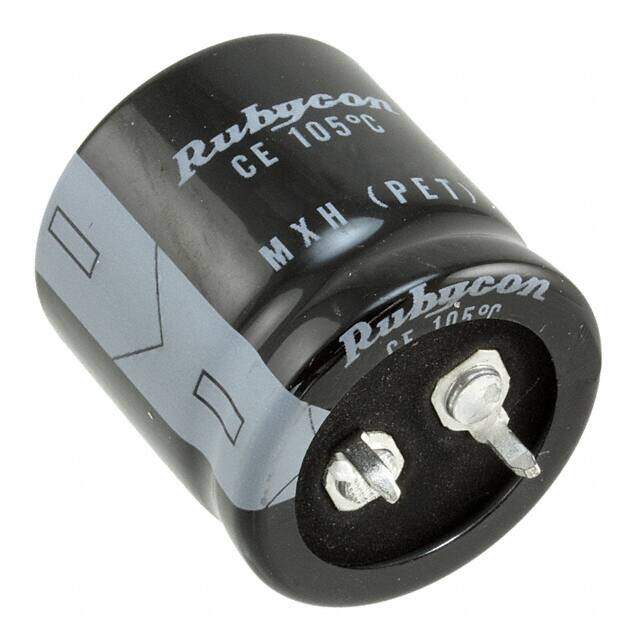

Alternative Model
