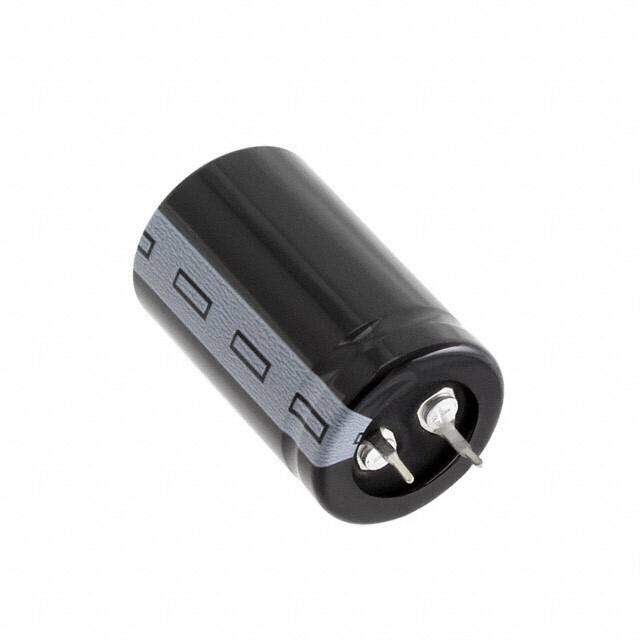

B43547A5477M007
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR B43547 450V 470muF ±20% 1.378Dia 35.00mm
PDF
/
Inventory: 5364
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Tray
Series B43547
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Applications General Purpose
Voltage - Rated 450V
Capacitance 470μF
Packing Method Cardboard
Terminal Pitch 10mm
Reach Compliance Code unknown
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 160mOhm @ 100Hz
Lead Spacing 0.394 10.00mm
Rated (DC) Voltage (URdc) 450V
Lifetime @ Temp 3000 Hrs @ 105°C
Polarization Polar
Impedance 240mOhm
Ripple Current @ Low Frequency 2.79A @ 100Hz
Dimensions
Diameter 35mm
Height Seated (Max) 2.047 52.00mm
Length 50mm
Compliance
RoHS Status ROHS3 Compliant

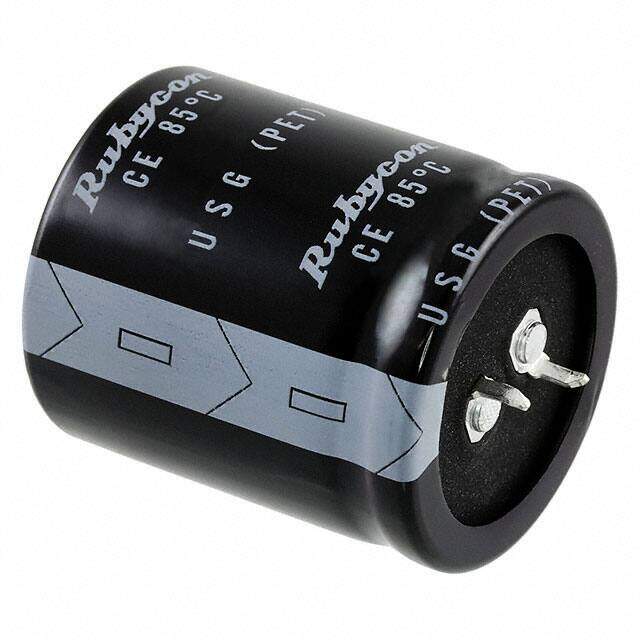

Alternative Model
