450USG470MEFCSN35X40
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description

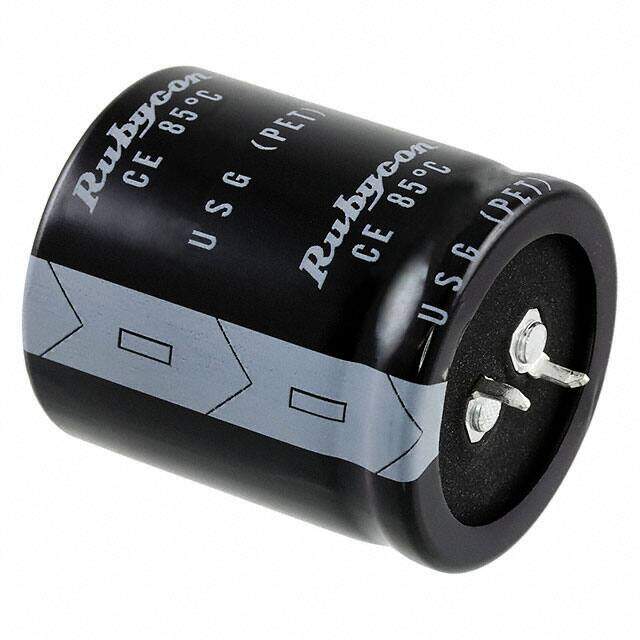

Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR USG 450V 470muF ±20% 1.378Dia 35.00mm
PDF
/
Buying Options
Total Price: USD $11.33
Unit Price: USD $11.3256
≥1 USD $11.3256
≥10 USD $8.01768
≥100 USD $6.711936
≥500 USD $6.315672
≥1000 USD $5.660037
≥3000 USD $5.46253
Inventory: 212
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2013
Series USG
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 470μF
Voltage - Rated DC 450V
Terminal Pitch 10mm
Lead Pitch 10.0076mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 3000 Hrs @ 85°C
Leakage Current 1.37968mA
Ripple Current 2.66A
Polarization Polar
Life (Hours) 3000 hours
Tan Delta 0.2
Ripple Current @ Low Frequency 2.66A @ 120Hz
Ripple Current @ High Frequency 3.724A @ 10kHz
Dimensions
Diameter 35mm
Height 40mm
Height Seated (Max) 1.654 42.00mm
Compliance
RoHS Status ROHS3 Compliant
