B41044A5687M
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

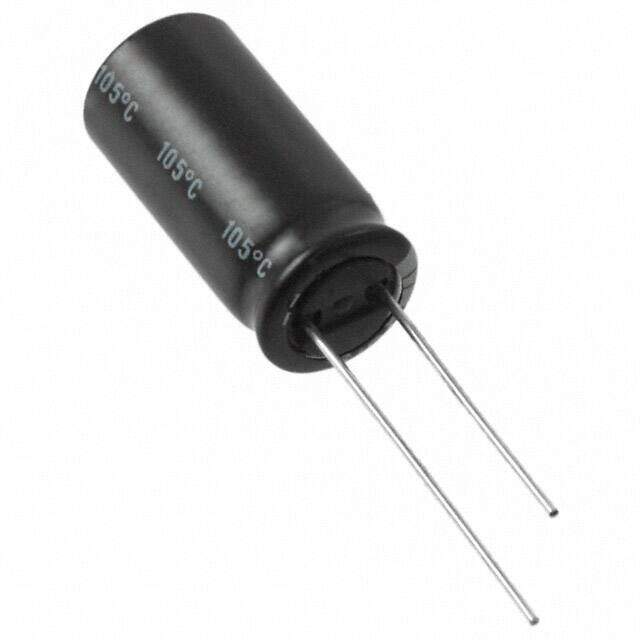

Radial Can ALUMINUM ELECTROLYTIC CAPACITOR B41044 25V 680muF ±20% 0.394Dia 10.00mm
PDF
/
Inventory: 8198
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial, Can
Surface Mount NO
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Packaging Bulk
Series B41044
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Applications General Purpose
Voltage - Rated 25V
Capacitance 680μF
Packing Method AMMO PACK; TAPE
Reach Compliance Code unknown
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Rated (DC) Voltage (URdc) 25V
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 0.51mA
Polarization Polar
Tan Delta 0.14
Impedance 54mOhm
Ripple Current @ High Frequency 1.1A @ 100kHz
Dimensions
Height Seated (Max) 0.866 22.00mm
Compliance
RoHS Status ROHS3 Compliant
