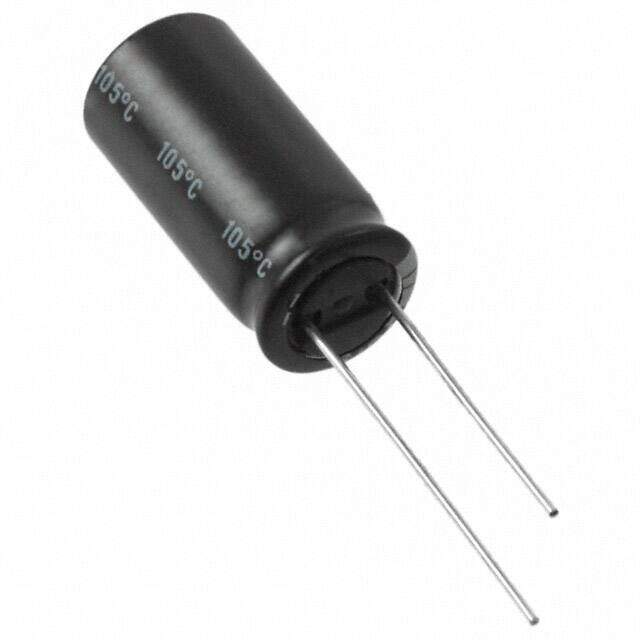

25YXG680MEFCT810X20
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description
YXG ALUMINUM ELECTROLYTIC CAPACITOR Radial Can aluminum electrolytic capacitor 0.394Dia 10.00mm ±20% 680muF 25V
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
≥10 USD $0.42856
≥100 USD $0.318912
≥500 USD $0.284416
≥1000 USD $0.226037
Inventory: 1000
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Box (TB)
Published 2015
Series YXG
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Voltage - Rated 25V
Capacitance 680μF
Terminal Pitch 5mm
Lead Pitch 5.0038mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.197 5.00mm
Rated (DC) Voltage (URdc) 25V
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 0.17mA
Ripple Current 770mA
Polarization Polar
Life (Hours) 5000 hours
Tan Delta 0.14
Impedance 46mOhm
Ripple Current @ Low Frequency 770mA @ 120Hz
Ripple Current @ High Frequency 1.4A @ 100kHz
Dimensions
Diameter 10mm
Height Seated (Max) 0.866 22.00mm
Length 20mm
Compliance
RoHS Status ROHS3 Compliant
