50RX30330M12.5X20
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

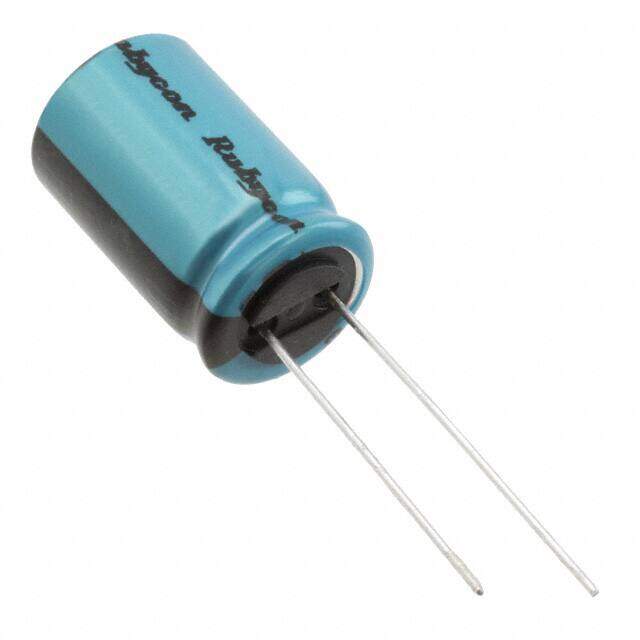

RX30 Radial Can aluminum electrolytic capacitor 0.492Dia 12.50mm ±20% 330muF 50V
PDF
/
Buying Options
Total Price: USD $0.25
Unit Price: USD $0.252761
≥1 USD $0.252761
≥10 USD $0.200226
≥100 USD $0.177712
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Technical
Operating Temperature -40°C~130°C
Packaging Bulk
Series RX30
Size / Dimension 0.492Dia 12.50mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Applications Automotive
Voltage - Rated 50V
Capacitance 330μF
Reach Compliance Code unknown
Lead Pitch 5.0038mm
Lead Spacing 0.197 5.00mm
Lifetime @ Temp 4000 Hrs @ 130°C
Ripple Current 1A
Polarization Polar
Life (Hours) 4000 hours
Impedance 65mOhm
Ripple Current @ Low Frequency 700mA @ 120Hz
Ripple Current @ High Frequency 1A @ 100kHz
Dimensions
Height Seated (Max) 0.866 22.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
