EEU-FR1H331LB
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can
Category Capacitors / Aluminum Electrolytic Capacitors
Description

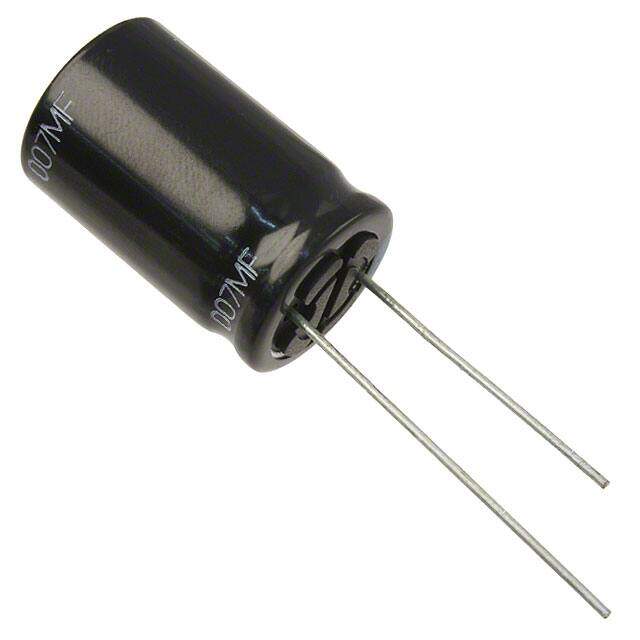

FR ALUMINUM ELECTROLYTIC CAPACITOR Radial Can aluminum electrolytic capacitor 0.394Dia 10.00mm ±20% 330muF 50V
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.62568
≥100 USD $0.54736
≥500 USD $0.445984
Inventory: 15899
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Tin
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Can
Terminal Shape WIRE
Number of Pins 2
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Box (TB)
Published 2012
Series FR
Size / Dimension 0.394Dia 10.00mm
Tolerance ±20%
JESD-609 Code e3
Feature General Purpose
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Applications General Purpose
Capacitance 330μF
Voltage - Rated DC 50V
Lead Pitch 5mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 22mOhm
Lead Spacing 0.197 5.00mm
Lead Diameter 600 μm
Lifetime @ Temp 10000 Hrs @ 105°C
Leakage Current 0.165mA
Ripple Current 2.15A
Polarization Polar
Life (Hours) 10000 hours
Tan Delta 0.1
Impedance 22mOhm
Ripple Current @ Low Frequency 1.505A @ 120Hz
Ripple Current @ High Frequency 2.15A @ 100kHz
Dimensions
Diameter 10mm
Height 25mm
Height Seated (Max) 1.063 27.00mm
Compliance
Radiation Hardening No
REACH SVHC Yes
RoHS Status RoHS Compliant
Lead Free Lead Free
