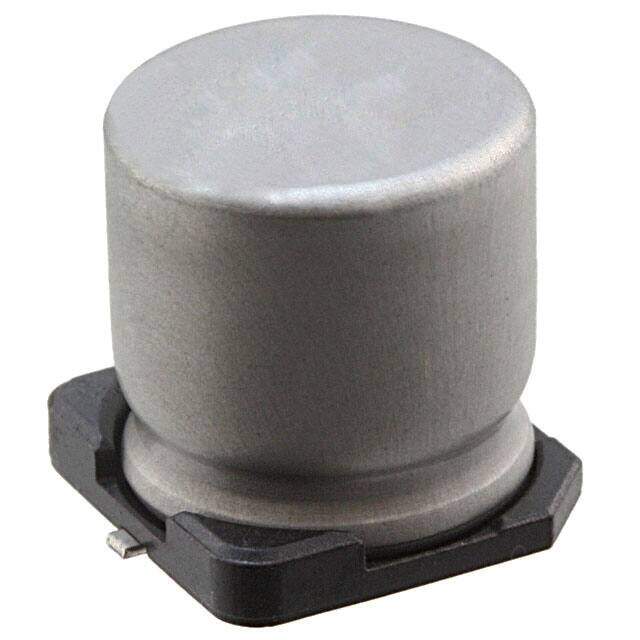

50NSKV2.2M5X5.5
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR NSKV 50V 2.2muF ±20% 0.197Dia 5.00mm
PDF
/
Inventory: 8780
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.217 5.50mm
Technical
Ripple Current @ High Frequency 19.5mA @ 10kHz
Ripple Current @ Low Frequency 13mA @ 120Hz
Tan Delta 0.18
Life (Hours) 1000 hours
Polarization Bi-Polar
Ripple Current 13mA
Leakage Current 0.0055mA
Lifetime @ Temp 1000 Hrs @ 105°C
Size Code 2121
Rated (DC) Voltage (URdc) 50V
Polarity NON-POLARIZED
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Capacitance 2.2μF
Voltage - Rated 50V
Applications General Purpose
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.197Dia 5.00mm
Series NSKV
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Surface Mount Land Size 0.209Lx0.209W 5.30mmx5.30mm
Dielectric Material ALUMINUM (WET)
Terminal Shape FLAT
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
