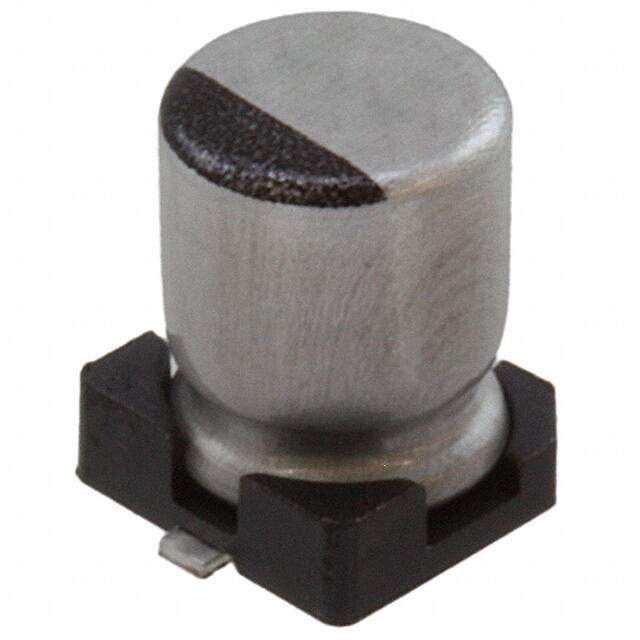

50SEV2.2M4X5.5
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - SMD
Category Capacitors / Aluminum Electrolytic Capacitors
Description
SEV ALUMINUM ELECTROLYTIC CAPACITOR Radial Can - SMD aluminum electrolytic capacitor 0.157Dia 4.00mm ±20% 2.2muF 50V
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.24112
Inventory: 95
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.217 5.50mm
Technical
Q Factor 0.12
Ripple Current @ High Frequency 21mA @ 10kHz
Ripple Current @ Low Frequency 14mA @ 120Hz
Life (Hours) 2000 hours
Polarization Polar
Ripple Current 14mA
Leakage Current 0.0011mA
Lifetime @ Temp 2000 Hrs @ 85°C
Size Code 1717
Rated (DC) Voltage (URdc) 50V
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Capacitance 2.2μF
Voltage - Rated 50V
Applications Automotive
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.157Dia 4.00mm
Series SEV
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount Land Size 0.169Lx0.169W 4.30mmx4.30mm
Dielectric Material ALUMINUM (WET)
Terminal Shape FLAT
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
