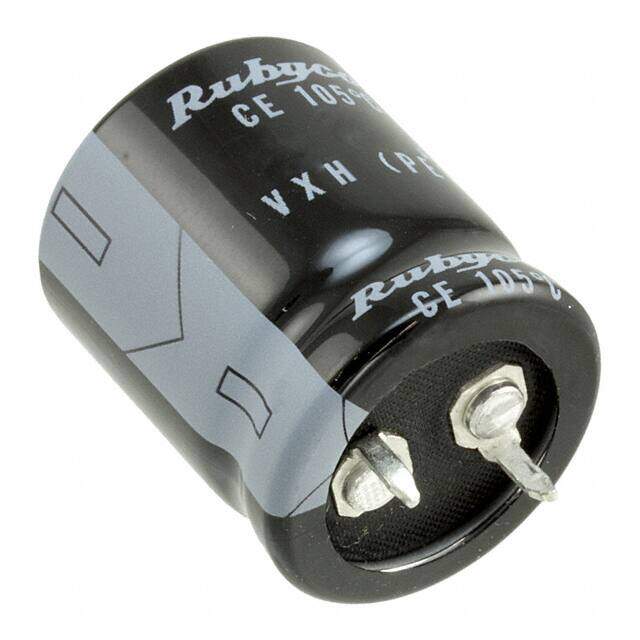

450VXH220MEFCSN25X35
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR VXH 450V 220muF ±20% 0.984Dia 25.00mm
PDF
/
Buying Options
Total Price: USD $5.78
Unit Price: USD $5.7816
≥1 USD $5.7816
≥10 USD $3.89576
≥100 USD $3.138784
≥500 USD $2.907432
≥1000 USD $2.522802
≥3000 USD $2.40665
Inventory: 15940
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2004
Series VXH
Size / Dimension 0.984Dia 25.00mm
Tolerance ±20%
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 220μF
Voltage - Rated DC 450V
Packing Method Box
Lead Pitch 10mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Spacing 0.394 10.00mm
Lead Diameter 2 mm
Voltage 450V
Lifetime @ Temp 5000 Hrs @ 105°C
Leakage Current 0.94393mA
Ripple Current 1.17A
Polarization Polar
Life (Hours) 5000 hours
Tan Delta 0.2
Ripple Current @ Low Frequency 1.37A @ 120Hz
Ripple Current @ High Frequency 1.918A @ 10kHz
Ripple Current (AC) 1.17A
Dimensions
Diameter 25mm
Height 35mm
Height Seated (Max) 1.457 37.00mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
