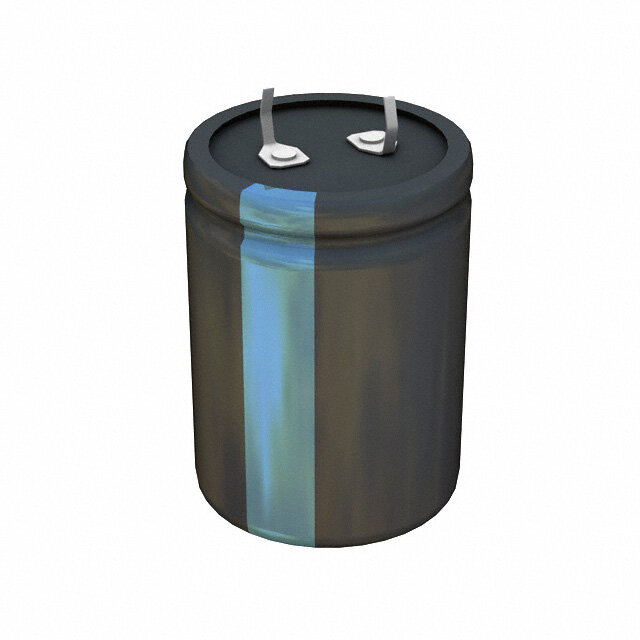

381EL221M450A042
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
Radial Can - Snap-In ALUMINUM ELECTROLYTIC CAPACITOR 381EL 450V 220muF ±20% 1.378Dia 35.00mm
PDF
/
Inventory: 7947
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Dielectric Material ALUMINUM (WET)
Weight 62.00001g
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2013
Series 381EL
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Snap in
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 220μF
Voltage - Rated DC 450V
Lead Pitch 10.0076mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
ESR (Equivalent Series Resistance) 670mOhm @ 120Hz
Lead Spacing 0.394 10.00mm
Lifetime @ Temp 7000 Hrs @ 105°C
Leakage Current 0.94393mA
Ripple Current 1A
Polarization Polar
Life (Hours) 7000 hours
Tan Delta 0.1
Ripple Current @ Low Frequency 1A @ 120Hz
Ripple Current @ High Frequency 1.4A @ 20kHz
Dimensions
Diameter 35mm
Height 40mm
Height Seated (Max) 1.575 40.00mm
Compliance
RoHS Status ROHS3 Compliant
