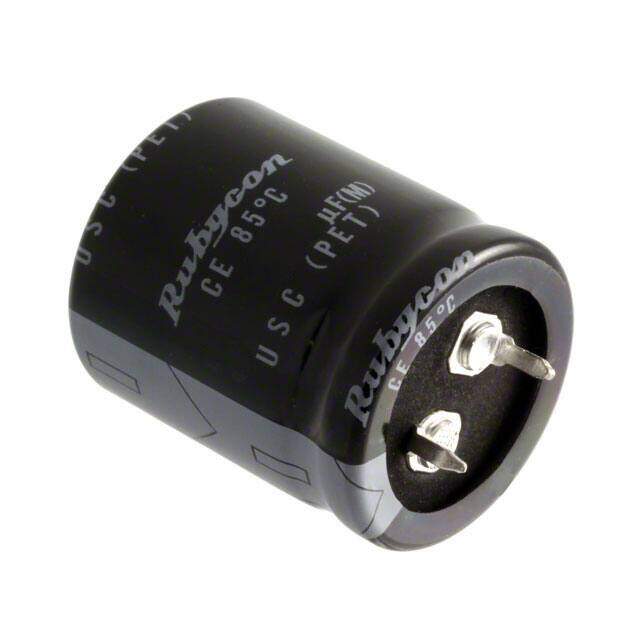

35USC6800MEFCSN25X30
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can - Snap-In
Category Capacitors / Aluminum Electrolytic Capacitors
Description
USC ALUMINUM ELECTROLYTIC CAPACITOR Radial Can - Snap-In aluminum electrolytic capacitor 0.984Dia 25.00mm ±20% 6800muF 35V
PDF
/
Buying Options
Total Price: USD $3.48
Unit Price: USD $3.476
≥1 USD $3.476
≥10 USD $2.34256
≥100 USD $1.887776
≥500 USD $1.748604
≥1000 USD $1.517278
≥3000 USD $1.447424
Inventory: 206
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 1.260 32.00mm
Height 30mm
Diameter 25mm
Technical
Ripple Current @ High Frequency 3.3235A @ 10kHz
Ripple Current @ Low Frequency 2.89A @ 120Hz
Tan Delta 0.4
Life (Hours) 3000 hours
Polarization Polar
Ripple Current 2.89A
Leakage Current 1.46356mA
Lifetime @ Temp 3000 Hrs @ 85°C
Lead Spacing 0.394 10.00mm
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Lead Pitch 10.0076mm
Terminal Pitch 10mm
Voltage - Rated DC 35V
Capacitance 6800μF
Applications General Purpose
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.984Dia 25.00mm
Series USC
Published 2012
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Dielectric Material ALUMINUM (WET)
Package / Case Radial, Can - Snap-In
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
